TPU LAYFLAT HOSE 6INCH 50BAR SUPER HIGH PRESSURE COAL MINING DRAINGE WATER HOSE AND PIPE

Short Description:

Size :6” (150mm)

W. P :50bar/725psi,B.P : 100bar/1450psi

Max each Length :100m(330ft)/roll, Processing: Moulding & Extruding

Material : Thermal Polyurethane (TPU)

Color : red, black or customized

Features: Flexible ,durable ,Light weight ,large hydraulic flow, anti-corrosion and oxidation, anti-aging, long using life, high strength tensile and support the higher hydraulic pressure. Easy equipment and withdraw, easily removable.

Application:Miningwater drainge, sewerage drainage,sea water transfer,Water supply of oil&gas field , petroleum transfer, Flood protection projects

Send email to us

Product Detail

Product Tags

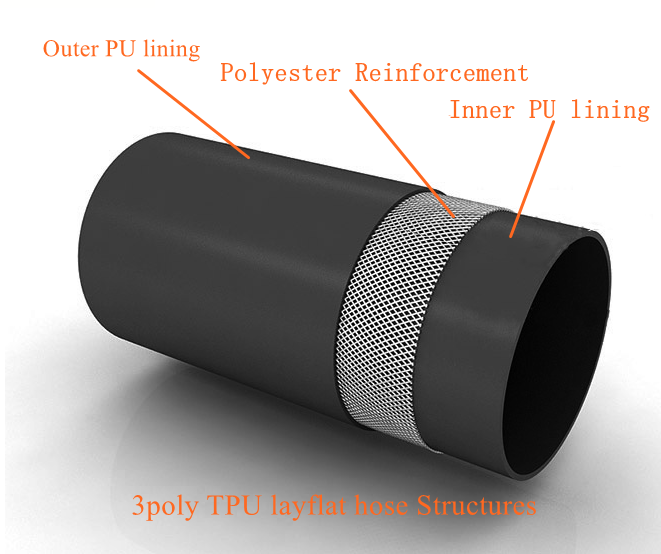

TPU layflat hose Structures:

PU hose Production Processing :

1. High strength tensile polyester weaved as hose Reinforcement by the loom（

2. PU raw material drying & Melting

3. Hose reinforcement drying

4. Extruded through the weaved reinforcement-

5. Hose cooling and drying

6. Hose rolling & length confirmation

7. Cutting & testing pressure

8. Packing & stock in warehouse for shipping.

Technical datas sheet:

SIZE	I.D.	Work pressure	Burst pressure	Wall thickness	weight	Max each Length
(Inch)	mm	PSI	PSI	mm	Kg/m	m
6	150	725	1450	5.0-6.5	4.0-4.5	≤201m

Features:

Thermoplastic polyurethane (TPU) is extruded “through the weave” in a unique one step production process. This process combined with UV protection additives and ageing-resistant in the compounds makes this transfer hose ideally suited for high abrasion applications in the mining and water transfer/fracking applications.

Application:

Water supply of oil&gas field , petroleum transfer, flood and sewerage drainage,sea water transfer, Flood protection projects .

Production details:
