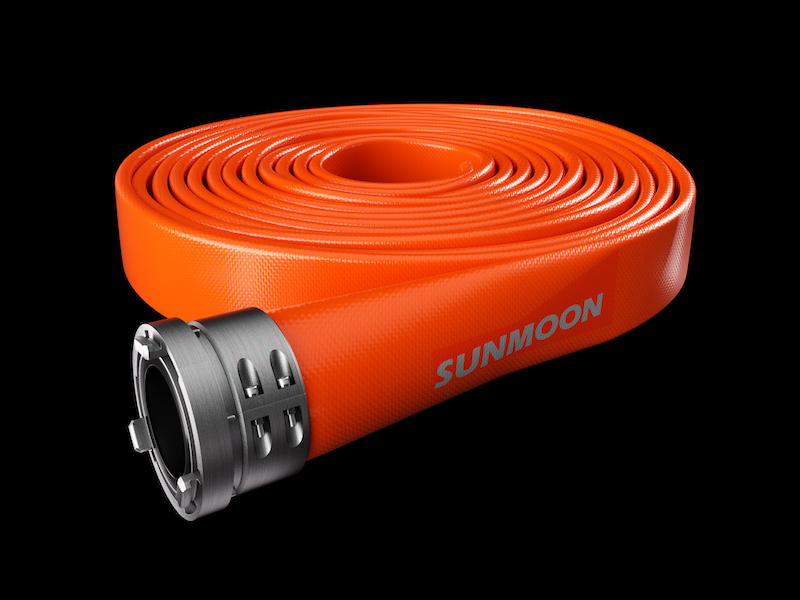

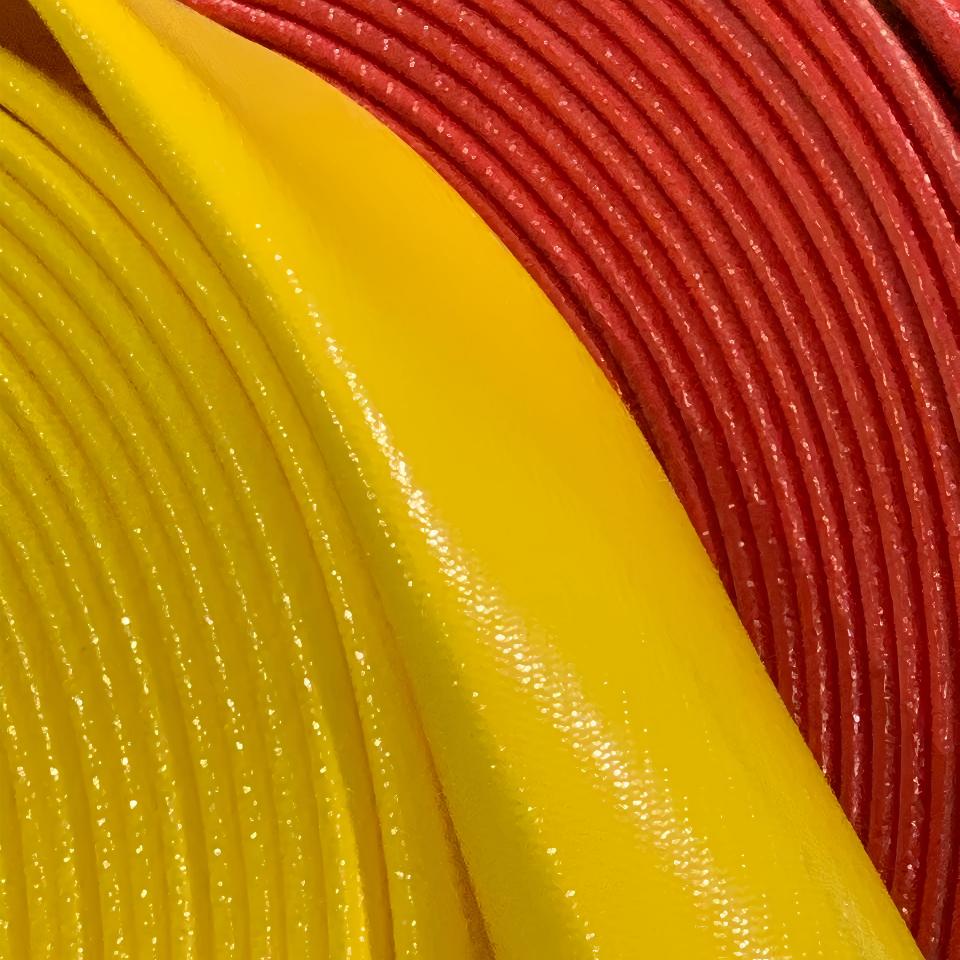

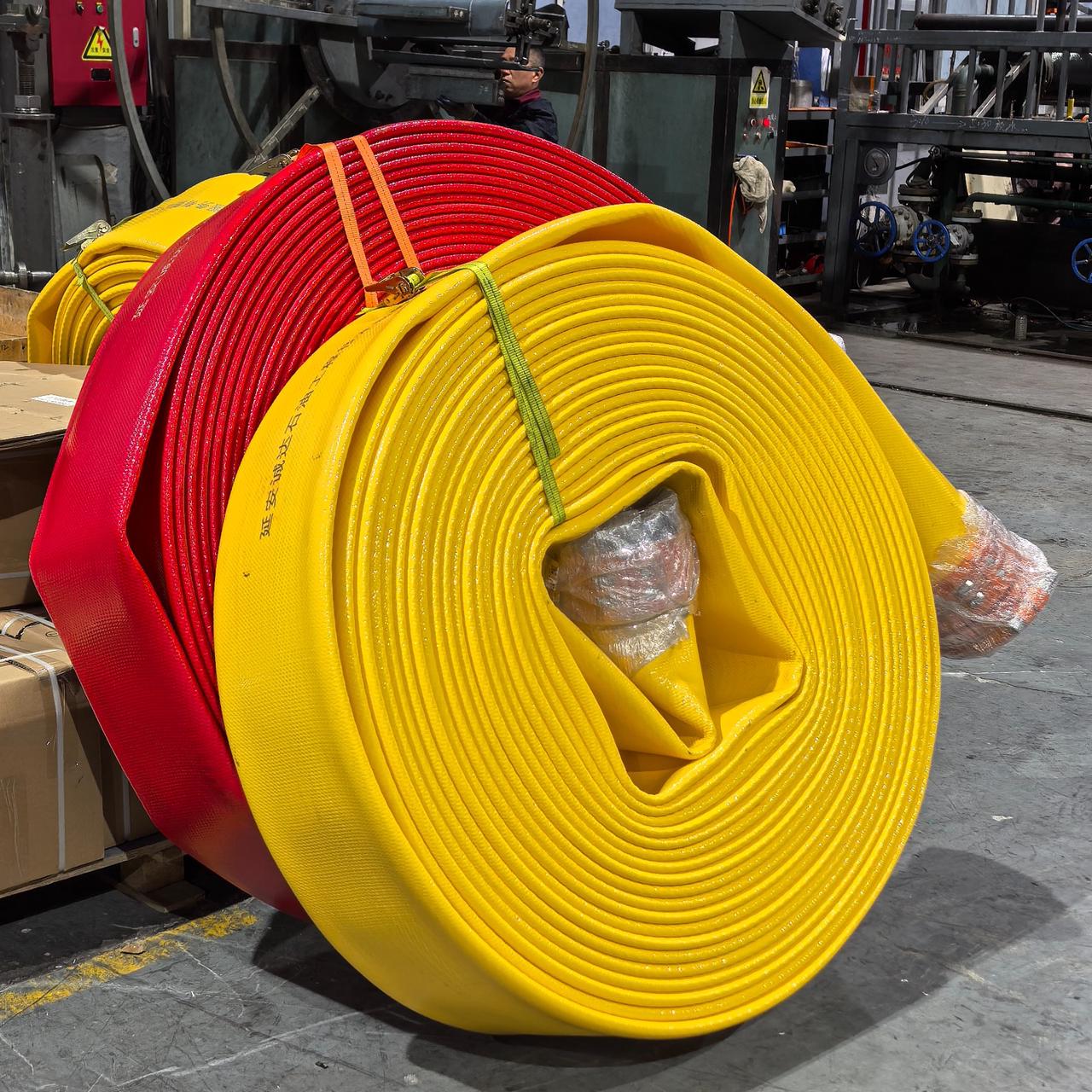

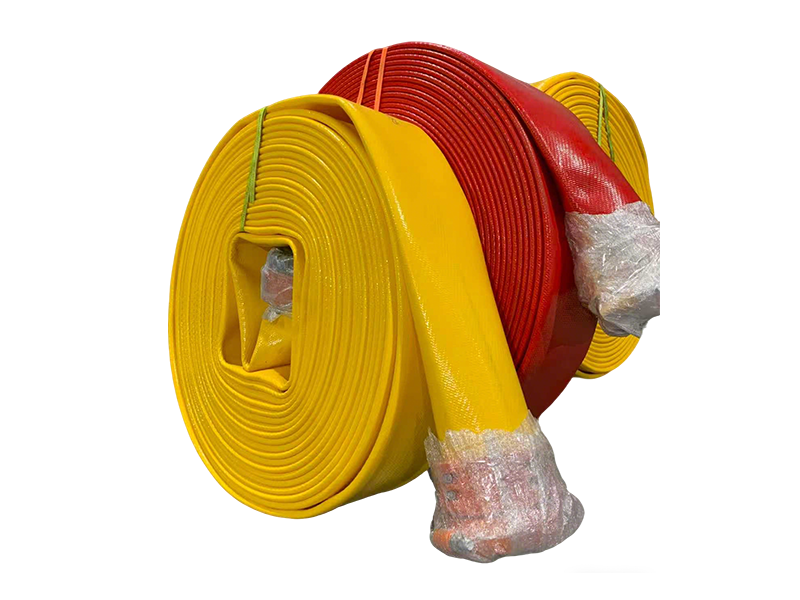

Engineered for concrete/mortar placement, this boom-end hose features a lightweight, highly flexible construction with a smooth bore for low pumping resistance and precise positioning.
• Operating Temperature Range: -60°F to 176°F (-50°C to 80°C)
* for coal mine emergency dewatering:Reinforcement: Circular-woven polyester jacket( With copper wire)
Specifications:
• Inside Diameter (ID): 3"–5" (other sizes on request). • Standard Color: Orange (custom colors available). • Standard Length: 660 ft (200 m) (other lengths on request). • Branding: Custom marking and private-label options available. • End Fittings: Uncoupled; anodized aluminum V-groove couplings; other options on request.
MESSAGE
TECHNICAL DATA
ID
Thickness
Working Pressure
Bursting Pressure
Tensile Strength
Weight
inch
mm
inch
mm
psi/bar
psi/bar
kg
lbs/ft
kg/m
3"
80
0.209-0.228
5.3-5.8
880/60
2646/180
28,000
1.008
1.5
4"
100
0.217-0.236
5.5-6.0
880/60
2646/180
40,300
1.882
2.8
5"
125
0.217-0.236
5.5-6.0
735/50
2205/150
65,000
2.150
3.2
Specifications apply only to the hose. The potential working pressure may be lower than specified above for hose lines with
couplings due to the nominal pressure of the couplings or the type of assembly.
