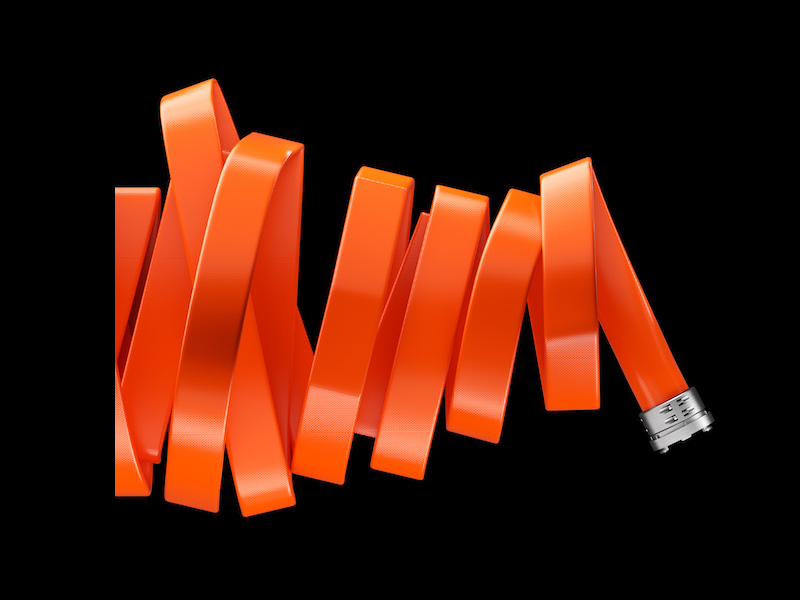

Drag Hose

Engineered for farm manure dragline systems, it features a rugged composite construction with high tensile strength, exceptional interlayer adhesion, and excellent abrasion resistance.

Home » Product Category » Drag Hose

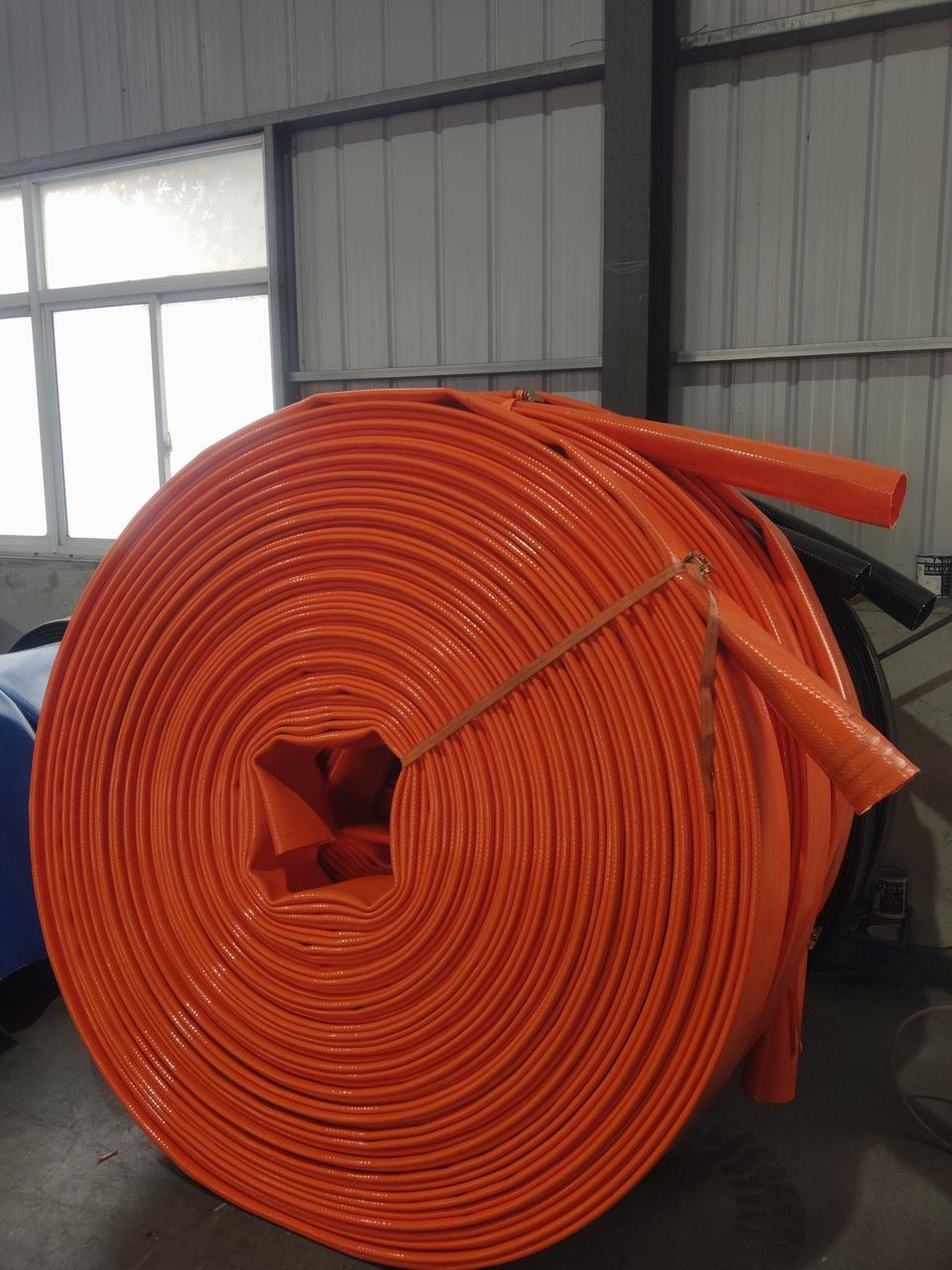

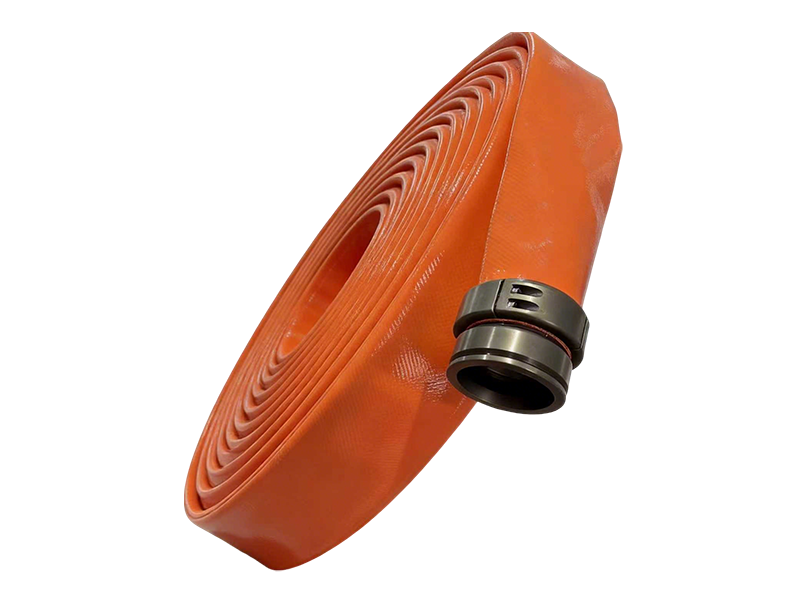

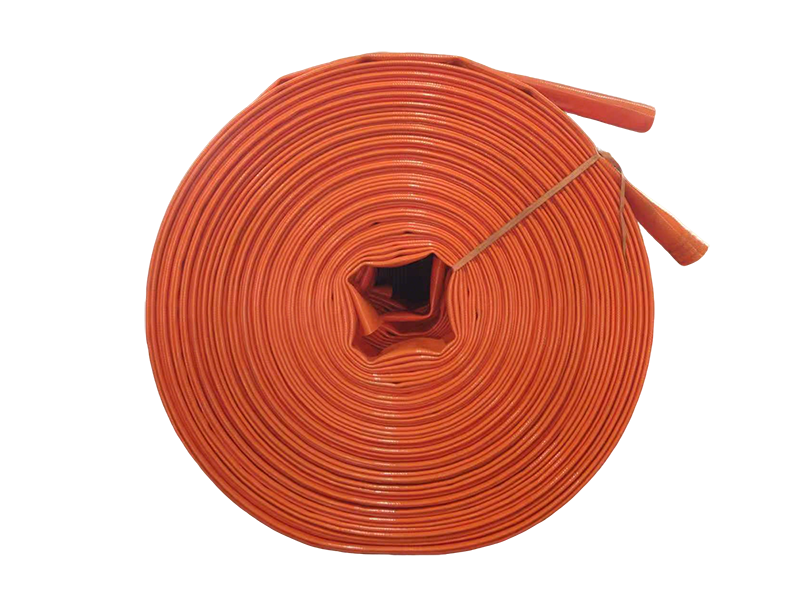

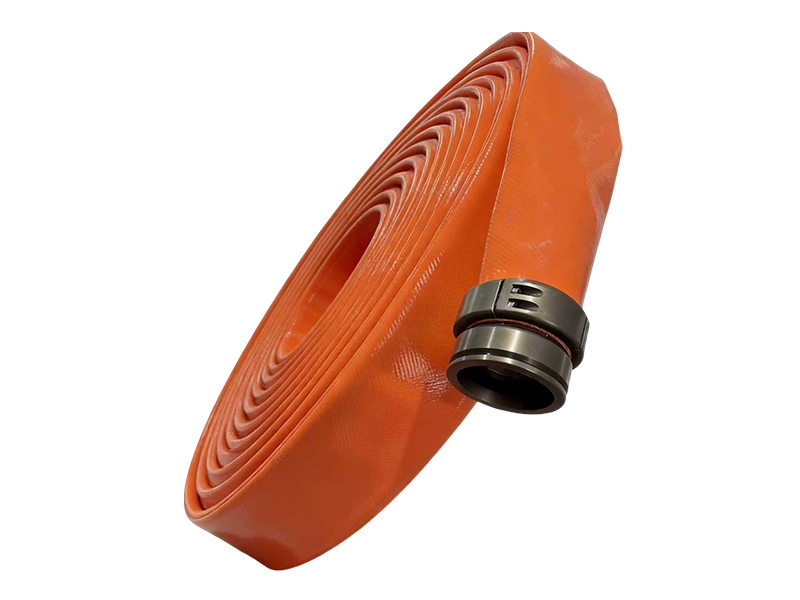

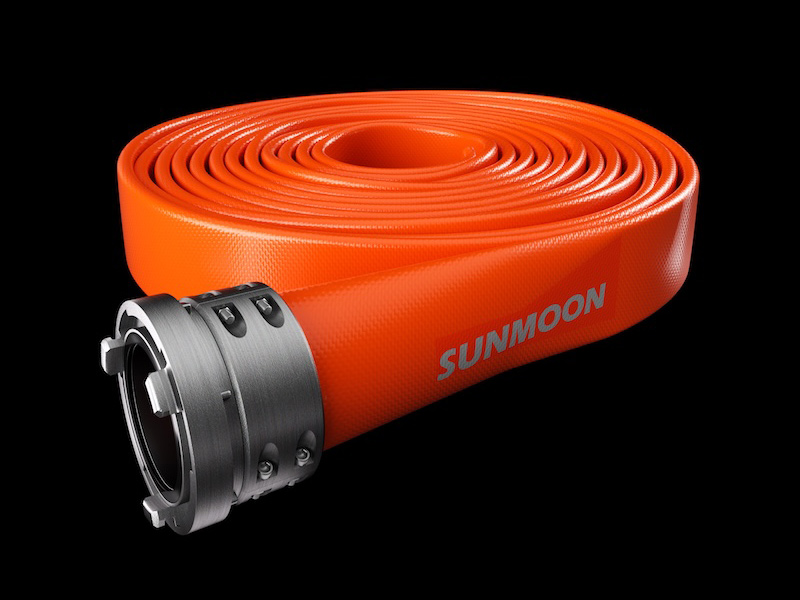

Drag Hose

Sunmoon Hose Manufacturing

PRODUCT SPECIFICATIONS

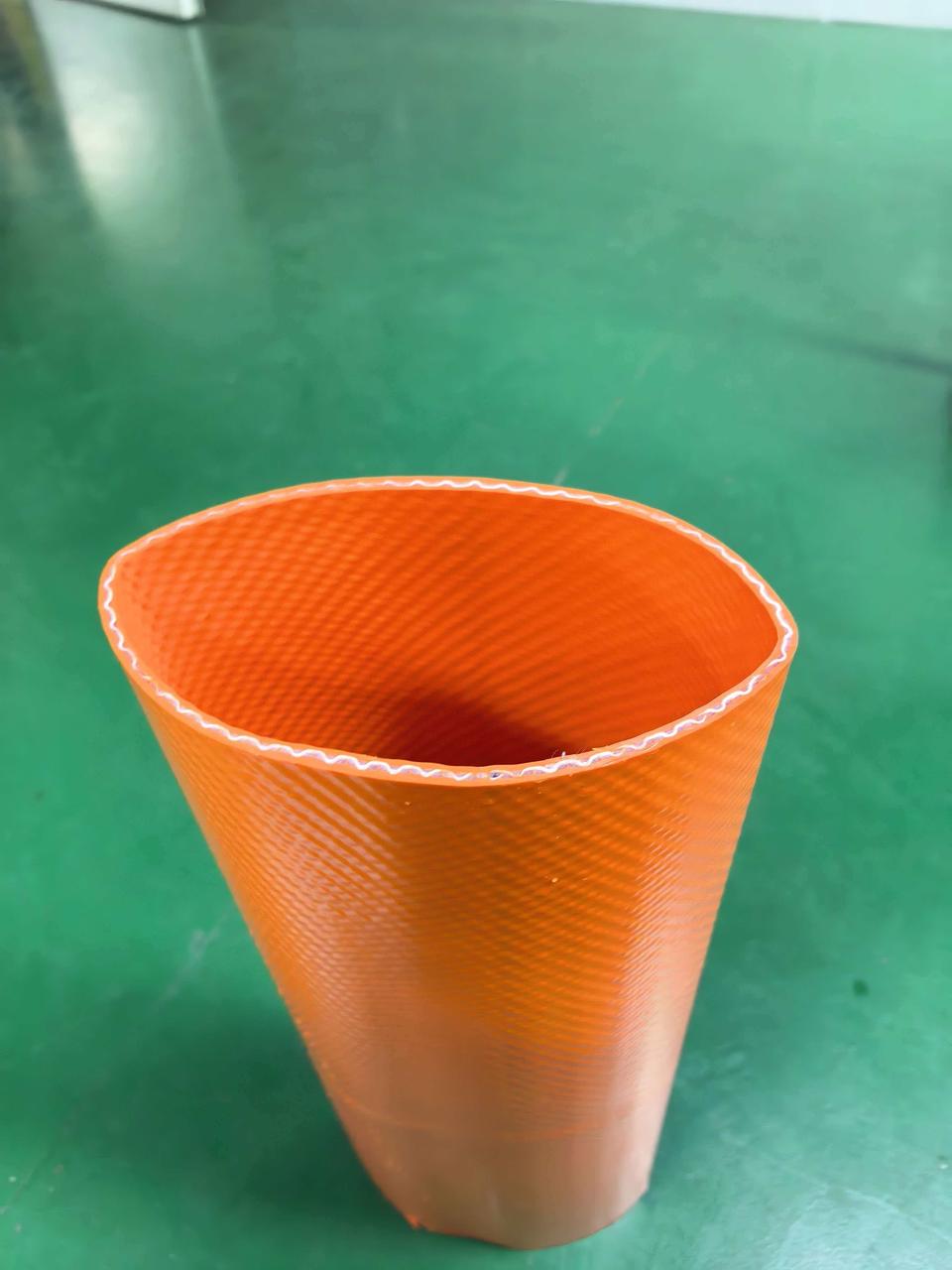

Structure:

• Inner Tube: TPU
• Outer Cover: TPU

• Operating Temperature Range: -60°F to 176°F (-50°C to 80°C)

Specifications:

• Inside Diameter (ID): 3"–8"; larger sizes on request.
• Standard Color: Orange-red; custom colors available.

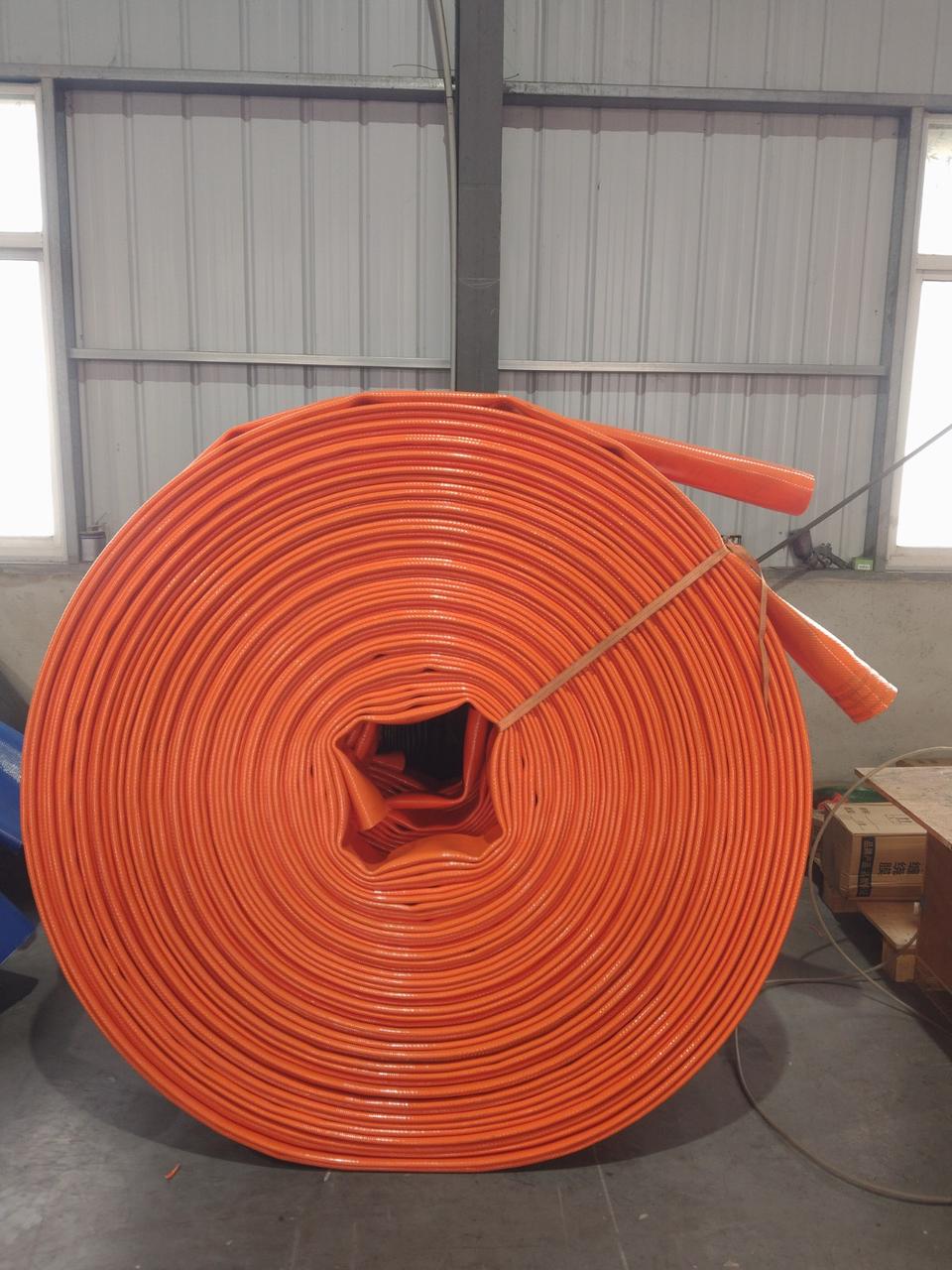

• Standard Length: 660 ft (200 m); other lengths on request.
• Branding: Custom marking and private-label options available.

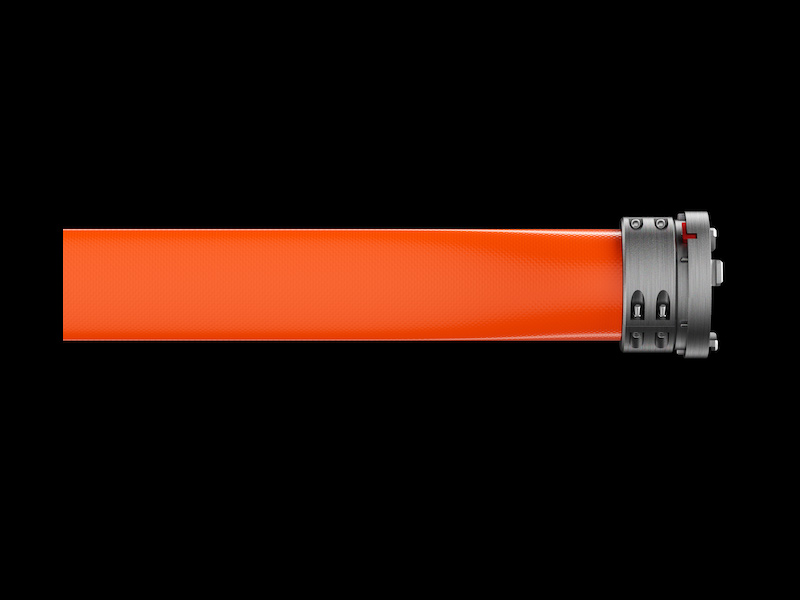

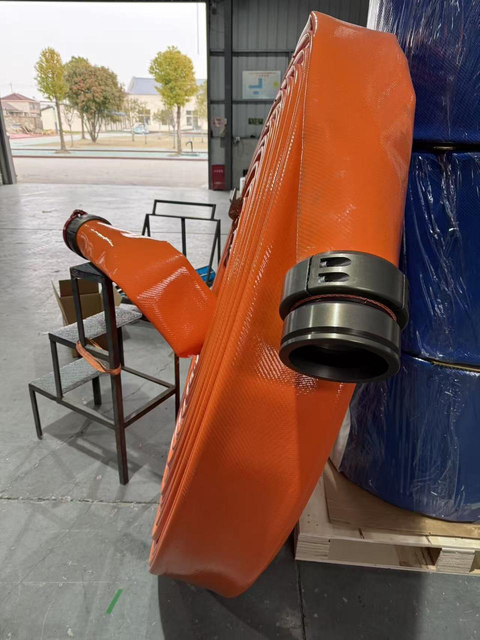

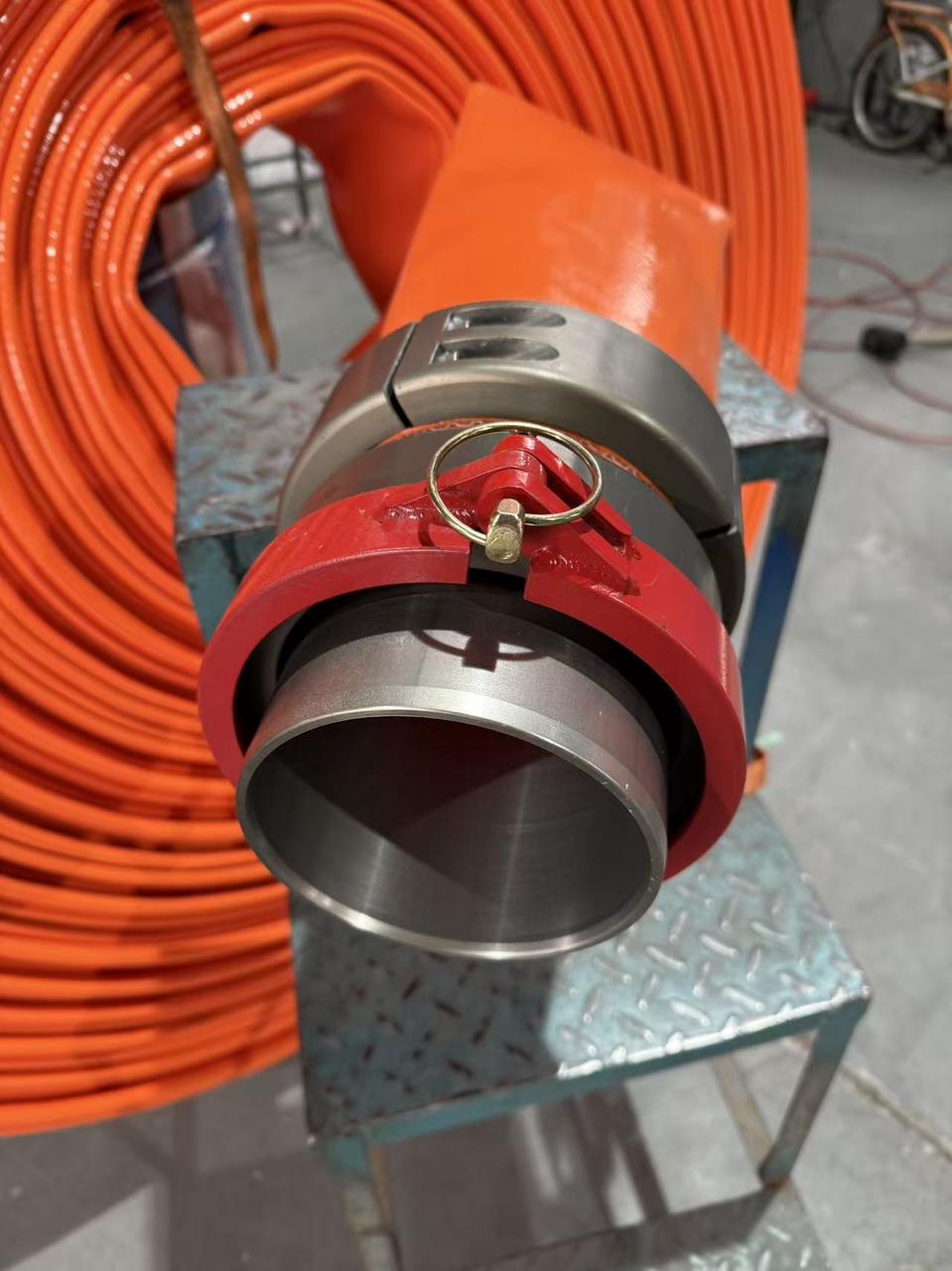

• End Fittings: Drag-service couplings (specialized for pull/drag applications).

MESSAGE

*E-mail

Product

INNER Dlameter(inch)

Fitting

Application

Working Pressure

*Message

TECHNICAL DATA

ID		Thickness	Weight	Working Pressure	Bursting Pressure	Tensile Strength	Cover adhesion
inch	mm	mm	Kg/m	PSI/bar	PSI/bar	kg	N/25mm

3"	76⁺⊃2;	3.3	0.9	250/17	750/51	10000	>165
4"	102⁺⊃2;	4.3	1.75	180/12	540/36	12,000	>165
5"	127⁺⊃2;	4.3	2.20	150/10	450/30	22,200	>165
5.5"	140⁺⊃2;	5.0	2.70	150/10	450/30	24,800	>165
7"	178⁺⊃2;	5.7	3.75	150/10	450/30	35,000	>165
7.5"	190⁺⊃2;	5.9	4.30	150/10	450/30	38,000	>165
8"	203.5⁺⊃2;	5.9	4.60	150/10	450/30	47,000	>165

Specifications apply only to the hose. The potential working pressure may be lower than specified above for hose lines with

couplings due to the nominal pressure of the couplings or the type of assembly.

Quality Control

As a professional manufacturer of engineering-grade hoses, product quality remains Sunmoon's foremost priority. Consequently, we employ a comprehensive suite of testing methods to ensure that our hoses deliver flawless quality assurance in real-world engineering applications. Listed below are the various testing methods we utilize for our hose products:

Working Pressure Test
4 hours per hose at 260m pressure test line
Abrasion Resistance Test
Performance benchmarking for every shift in resin hardness (PVC/TPU) or material formulation.
Bursting Pressure Test
Mandatory verification for every raw material batch and new process protocol.
Cover Adhesion Test
Systematic bond-strength comparison and verification for every production lot.
Anti Static Test
Test every oil hose to match the anti-static standard - Resistance: Max 4.9 Ohm/m (Rated); 0.98 Ohm/m (Measured under working pressure).

Customized Services at SUNMOON

At SUNMOON, we don’t just supply standard hoses—we build application-based layflat hose solutions for different working conditions. With years of manufacturing experience in TPU and NBR layflat hose, we understand that every project has different requirements for diameter, pressure, length, reinforcement, cover thickness, and fittings.

That’s why we offer flexible customization based on your actual use scenario, helping you get the right hose for frac water transfer, manure drag systems, dewatering, mining, municipal bypass, and other demanding applications. The result is better performance, longer service life, and a more practical fit for your jobsite.

Inquire

$frac water hose$

Customization Options

Basic Customization

●Length:standard & custom reels
●Diameter & wall thickness:tailored to pressure and handling
●Color options:for brand or jobsite identification
●Packaging:carton/ pallet / reel / export packing
●Logo & marking:OEM branding, spec lines, batch coding
System Customization

●Couplings: Camlock / Bauer / Storz / Flange / custom ends
●Reel & deployment systems: reels / frames / storage solutions
Material Customization

●High-pressure upgrades: aramid reinforcement options for higher pressure needs
●Special requirements: anti-static / UV / specified compounds (as required)
