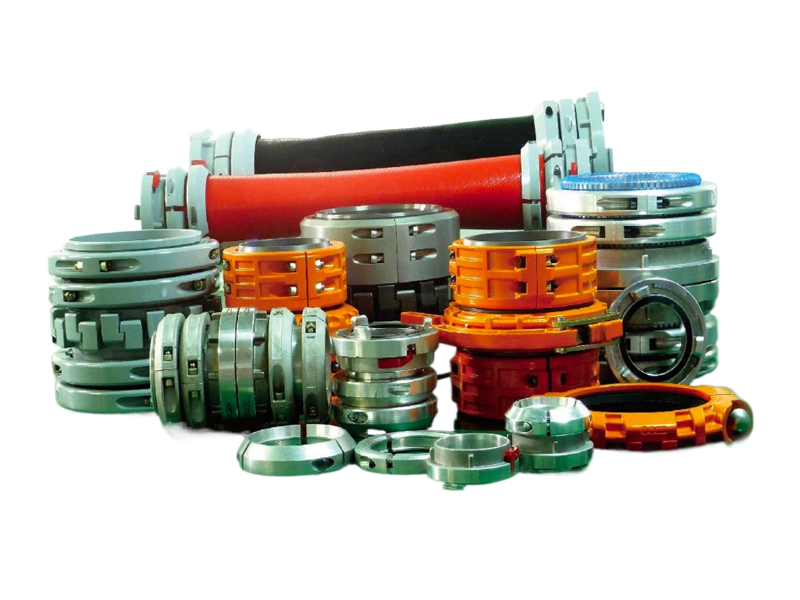

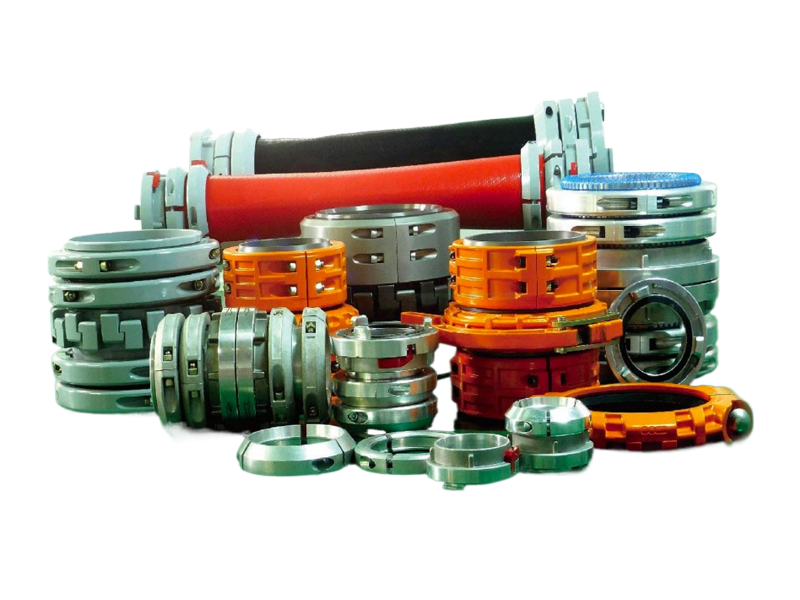

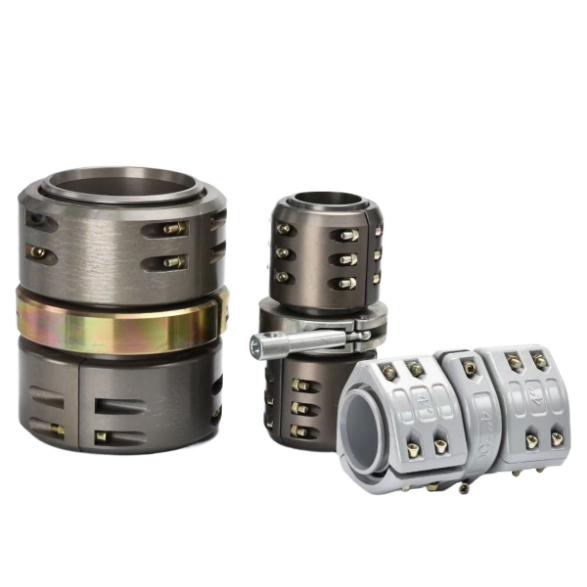

Hose Fittings & Couplings

We also provide all types of hose couplings such as American coupling,German coupling, Italian coupling, Japanese coupling, quick coupling, heavy- duty coupling, etc.
Coupling materials: Aluminum, alloy, cooper, fiber glass etc.
Coupling specification: 1” to 20”
Special materials and specific couplings can be customized

Home » Product Category » Hose Fittings & Couplings

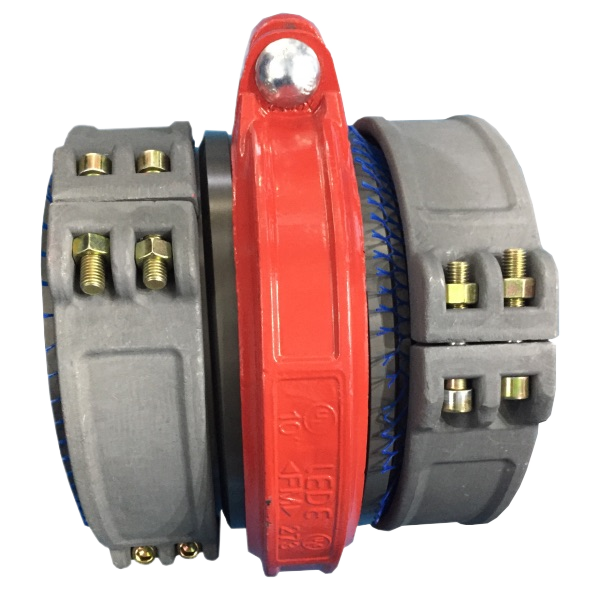

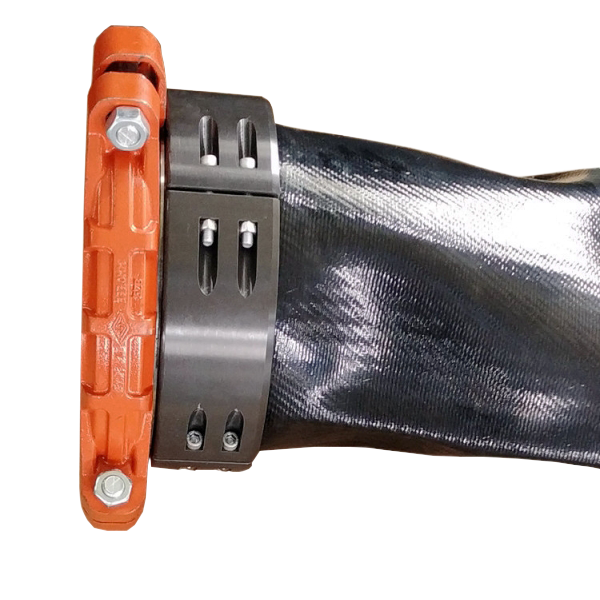

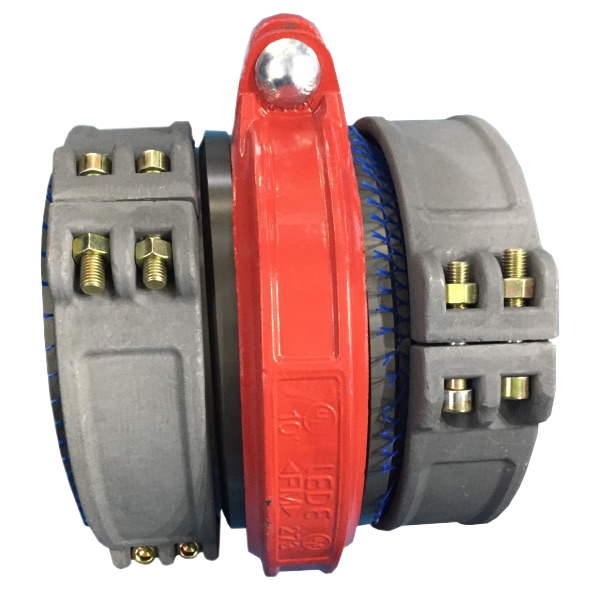

Victaulic Couplings

VIC coupling is a commonly used water hose fitting. Material is forged aluminium alloy and clamp is forged steel. It is durable after anodic oxidation treatment. Its mainly for shale gas fracturing water supply in the water lay flat hose connection.

Specification and model: DN200 ~ Dn400
Material: aluminum, steel
Working pressure: 150psi ~ 240psi (1.0MPa ~ 1.6Mpa)

Size (inch)	Diameter(mm)	Work Pressure (Bar)	Material
4	100	10,16,20,28	Forged Aluminum
6	150	10,16,20,28
8	20	10,14,16,20,28
10	250	10,14,16,20
12	300	8,10,14,16
14	350	5,8,10,14
16	400	5,8,10

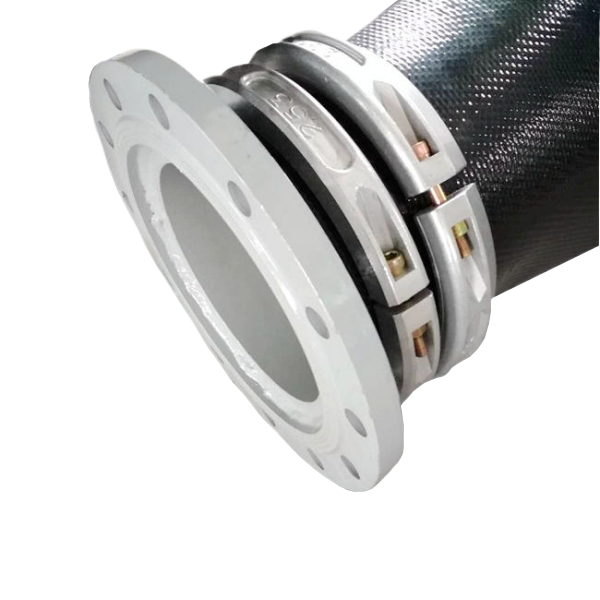

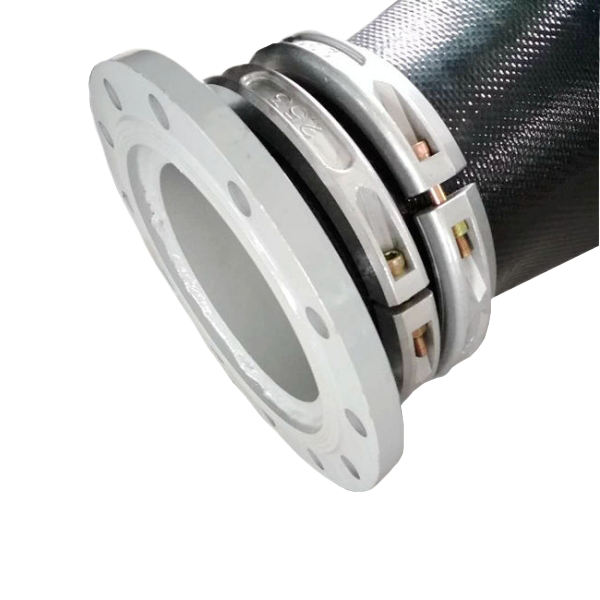

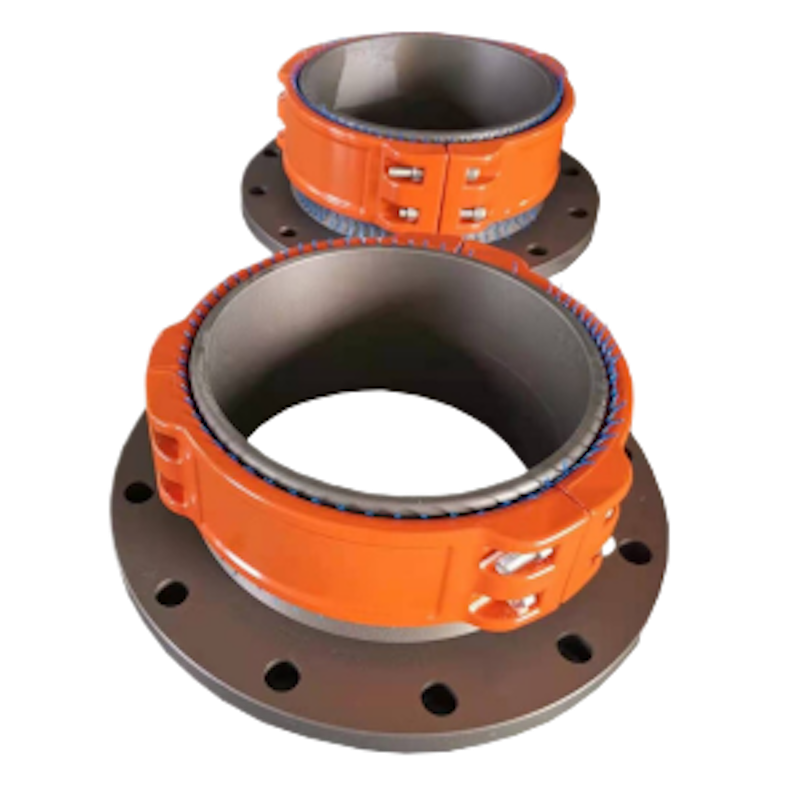

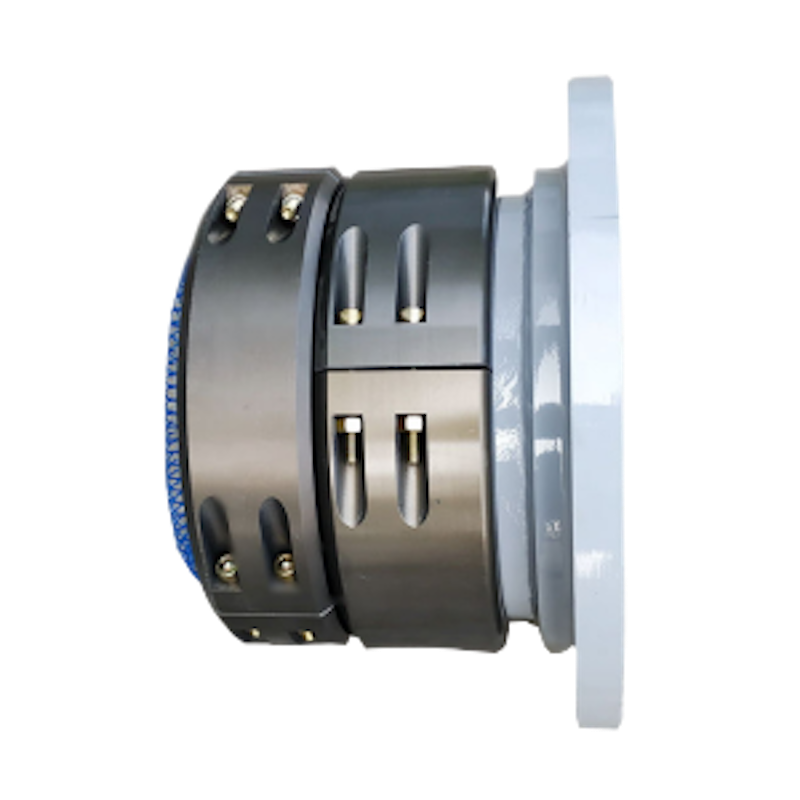

Flange Couplings

Flange fitting is an important part of layflat hose and pump connection.We provides different types and different materials of flange fittings to meet all your needs.

Specification and model: DN100 ~ DN400
Material: aluminum, steel
Working pressure: 150psi ~ 240psi (1.0MPa ~ 1.6Mpa)

Size (inch)	Diameter(mm)	Work Pressure (Bar)	Material
10	250	10,14,16,20	Forged Aluminum
12	300	8,10,14,16
14	350	5,8,10,14
16	400	5,8,10

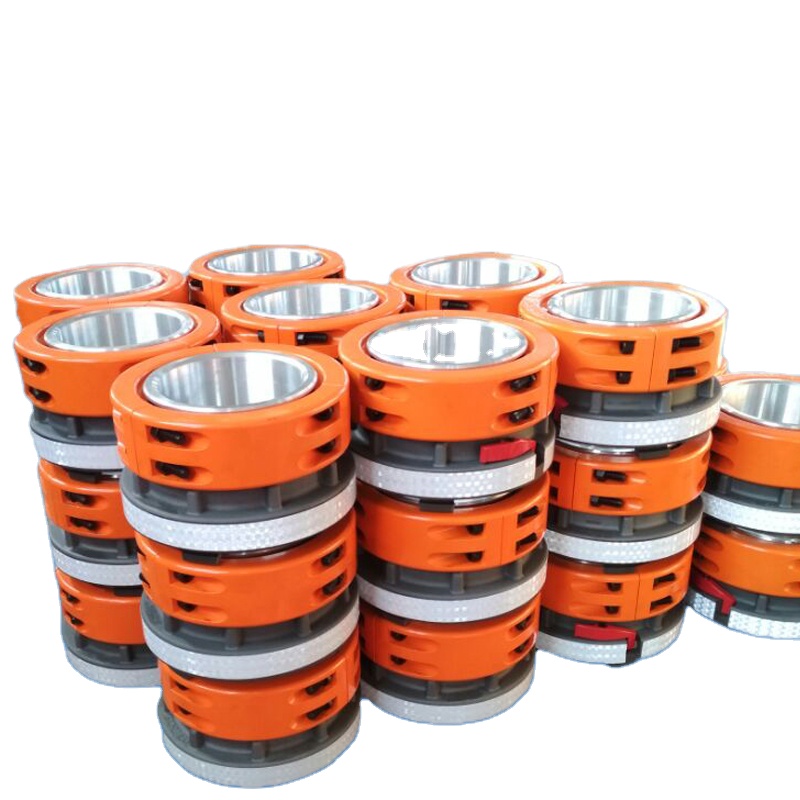

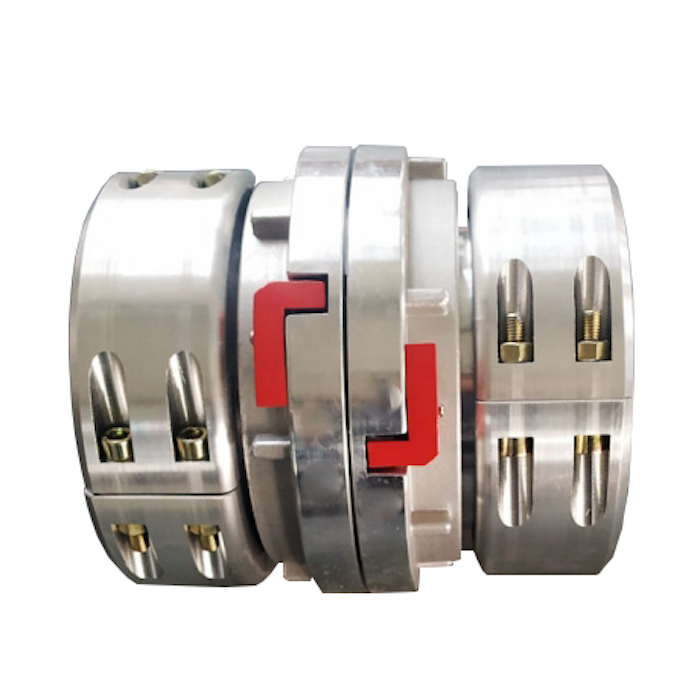

Storz Self-locking Coupings

STORZ self locking coupling is a kind of commonly used hose fitting, which is usually cast or forged by aluminium alloy. It is easy and fast to install. Base on the unique self-locking structure to ensure its safe use. Our company can provide DN100-DN300 STORZ self locking couplings. If you want to know more, please send me the email, then I will give you more introduce details.

Specification and model: DN50 ~ dn400
Material: aluminum, steel
Working pressure: 150psi ~ 240psi (1.0MPa ~ 1.6Mpa)

Size (inch)	Diameter(mm)	Work Pressure (Bar)	Material
2	50	10,16,20,28	Forged Aluminum
2.5	65	10,16,20,28
3	80	10,16,20,28
4	100	10,16,20,28
6	150	10,16,20,28
8	200	10,14,16,20,28
10	250	10,14,16,20
12	300	8,10,14,16	High Strength Tensile Forged Aluminum
14	350	5,8,10,14
16	400	5,8,10
20	502	5,8,10

Hose Fittings & Couplings

Sunmoon Hose Manufacturing

MESSAGE

Quality Control

As a professional manufacturer of engineering-grade hoses, product quality remains Sunmoon's foremost priority. Consequently, we employ a comprehensive suite of testing methods to ensure that our hoses deliver flawless quality assurance in real-world engineering applications. Listed below are the various testing methods we utilize for our hose products:

Working Pressure Test
4 hours per hose at 260m pressure test line
Abrasion Resistance Test
Performance benchmarking for every shift in resin hardness (PVC/TPU) or material formulation.
Bursting Pressure Test
Mandatory verification for every raw material batch and new process protocol.
Cover Adhesion Test
Systematic bond-strength comparison and verification for every production lot.
Anti Static Test
Test every oil hose to match the anti-static standard - Resistance: Max 4.9 Ohm/m (Rated); 0.98 Ohm/m (Measured under working pressure).
