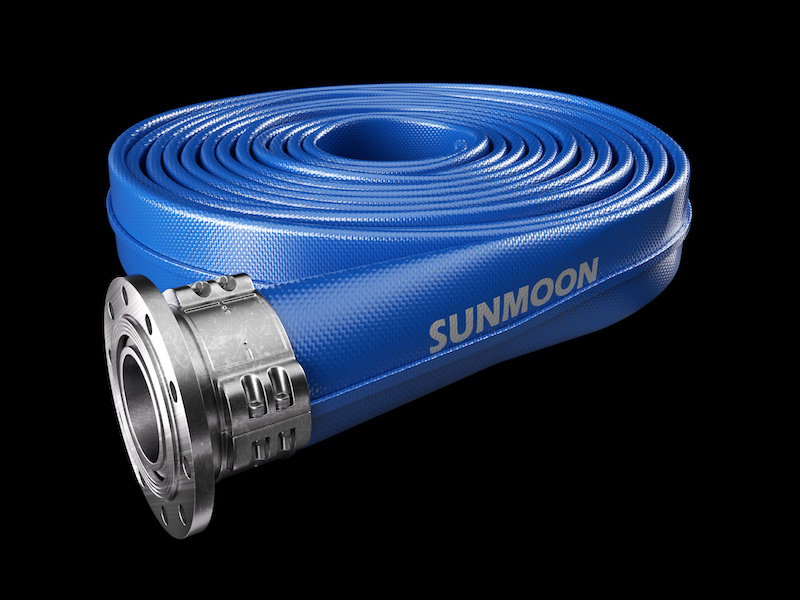

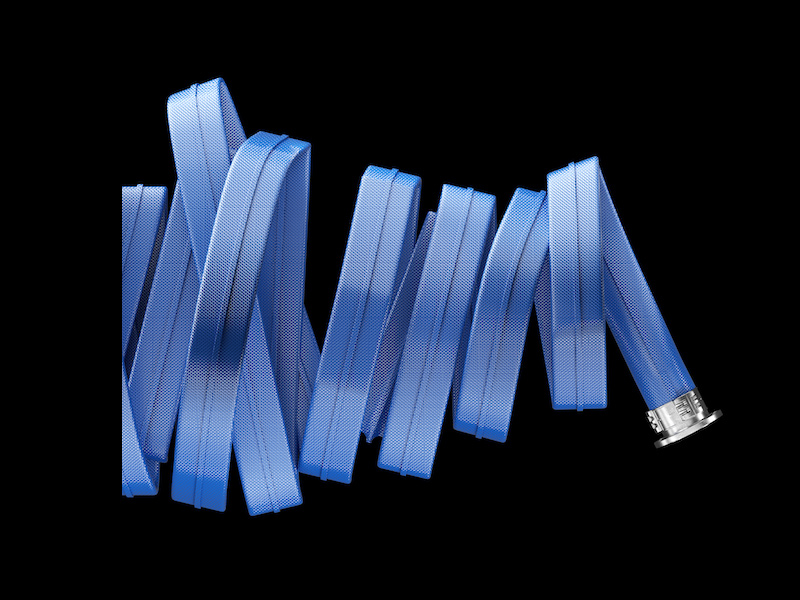

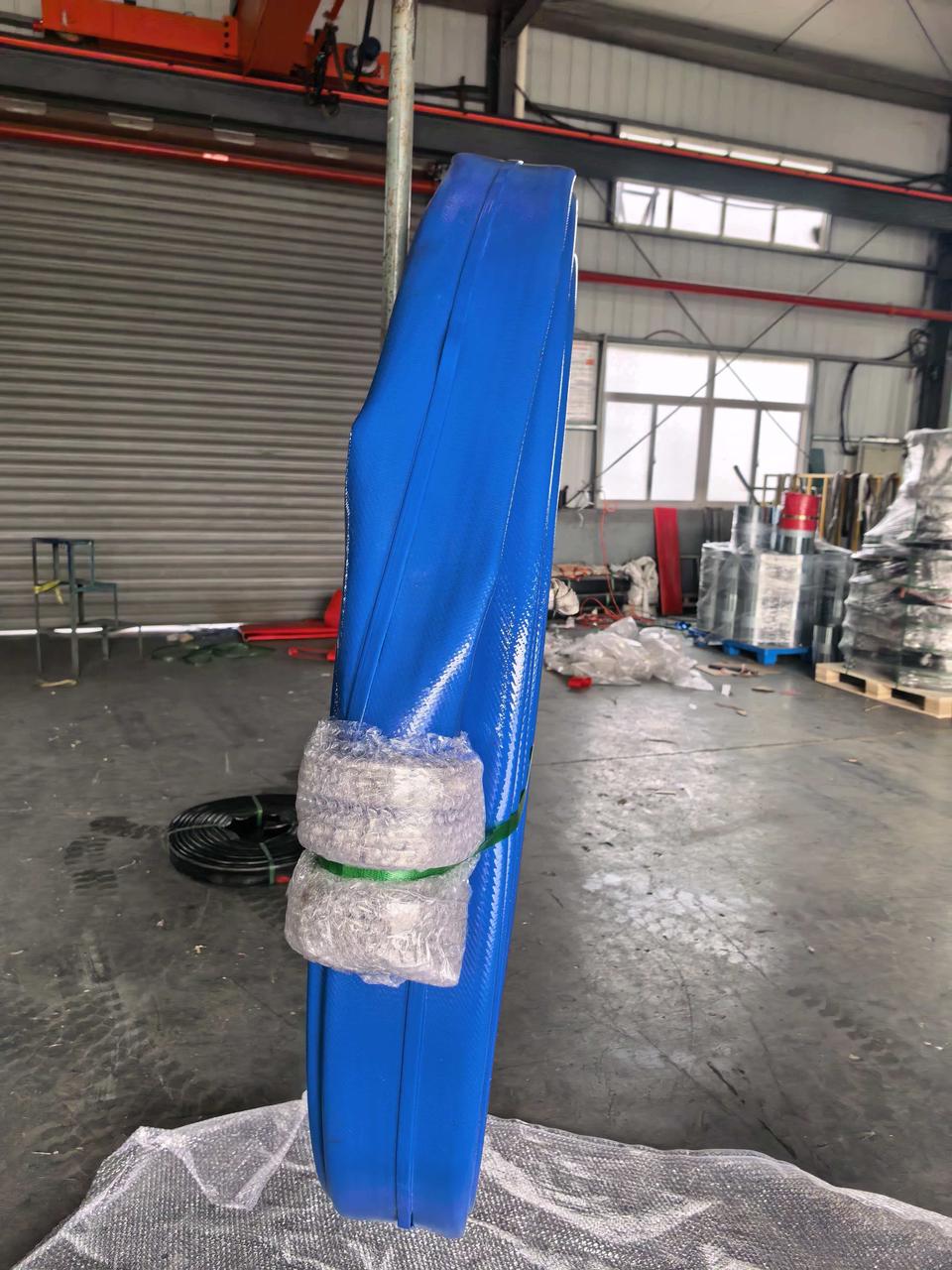

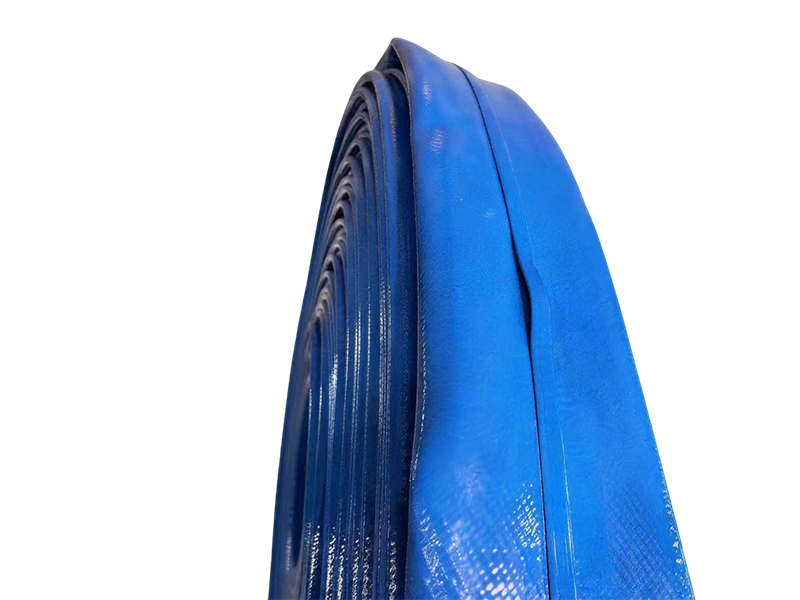

Engineered for deep-well underground extraction with high pressure capacity, ultra-high axial tensile strength, and superior corrosion resistance—outperforming conventional plastic and metal pipe.
• Operating Temperature Range: -60°F to 176°F (-50°C to 80°C)
* for coal mine emergency dewatering:Reinforcement: Circular-woven polyester jacket( With copper wire)
Specifications:

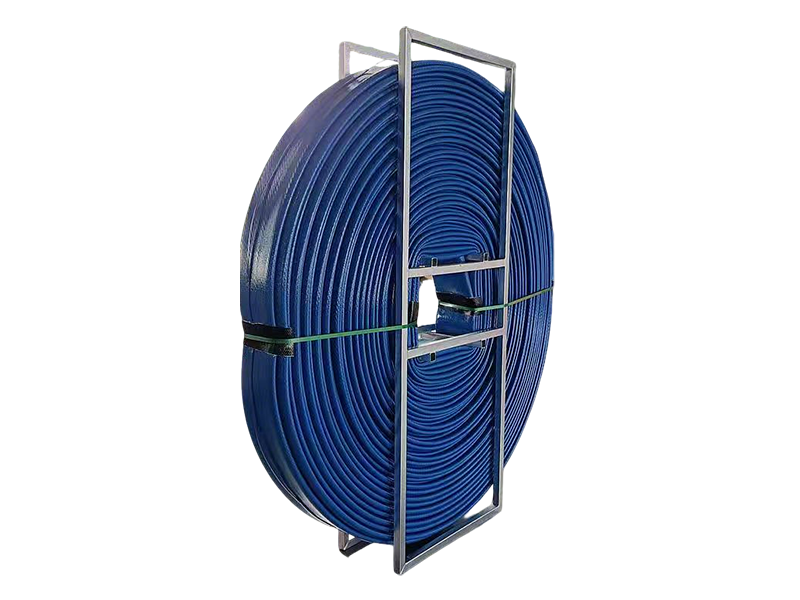

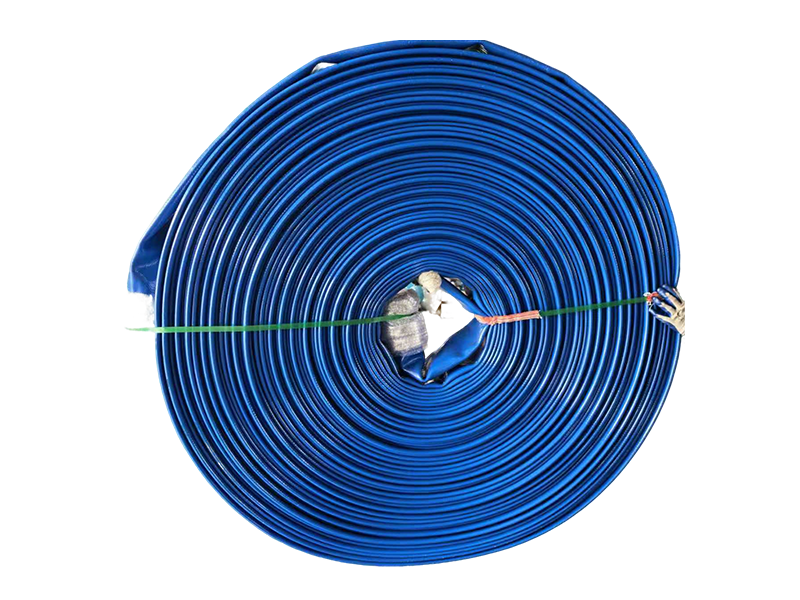

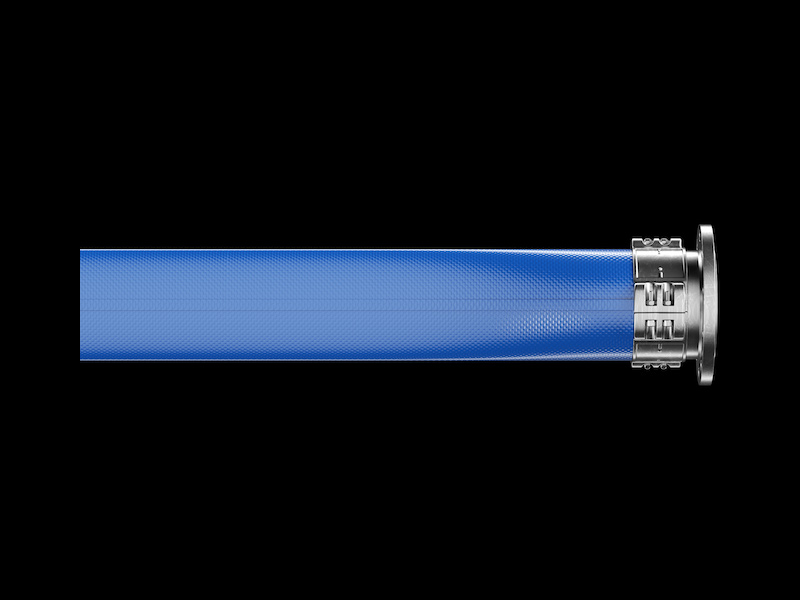

• Inside Diameter (ID): 2"–8"; larger sizes on request. • Standard Color: Blue; custom colors available. • Standard Length: 660 ft (200 m); other lengths on request. • Branding: Custom marking and private-label options available. • End Fittings: Deep-well/ESP riser couplings (specialized).
MESSAGE
TECHNICAL DATA
ID
Working Pressure
Bursting Pressure
Weight
Tensile Strength
Max Working Load
O.D.Expansti on Ratio
Axial Elongation
inch
mm
Psi/bar
Psi/bar
Kg/m
Kg
ton
%
%
2"
50
440/30
1320/90
0.65
4600
1.8
< 7 %
≤0.9%
3"
80
440/30
1320/90
0.95
8600
4.4
< 7 %
≤0.9%
4"
100
580/40
1740/120
2.00
18200
5.5
<10%
≤0.9%
5"
125
485/33
1440/100
2.20
20400
7.5
<10%
≤0.9%
6"
150
485/33
1440/100
3.40
26600
8.5
<10%
≤0.9%
8"
200
410/28
1230/84
4.40
34800
12
<6%
<1.3%
Specifications apply only to the hose. The potential working pressure may be lower than specified above for hose lines with
couplings due to the nominal pressure of the couplings or the type of assembly.
Quality Control
As a professional manufacturer of engineering-grade hoses, product quality remains Sunmoon's foremost priority. Consequently, we employ a comprehensive suite of testing methods to ensure that our hoses deliver flawless quality assurance in real-world engineering applications. Listed below are the various testing methods we utilize for our hose products:
Working Pressure Test 4 hours per hose at 260m pressure test line
Abrasion Resistance Test Performance benchmarking for every shift in resin hardness (PVC/TPU) or material formulation.
Bursting Pressure Test Mandatory verification for every raw material batch and new process protocol.
Cover Adhesion Test Systematic bond-strength comparison and verification for every production lot.
Anti Static Test Test every oil hose to match the anti-static standard - Resistance: Max 4.9 Ohm/m (Rated); 0.98 Ohm/m (Measured under working pressure).
Customized Services at SUNMOON
At SUNMOON, we don’t just supply standard hoses—we build application-based layflat hose solutions for different working conditions. With years of manufacturing experience in TPU and NBR layflat hose, we understand that every project has different requirements for diameter, pressure, length, reinforcement, cover thickness, and fittings.
That’s why we offer flexible customization based on your actual use scenario, helping you get the right hose for frac water transfer, manure drag systems, dewatering, mining, municipal bypass, and other demanding applications. The result is better performance, longer service life, and a more practical fit for your jobsite.
