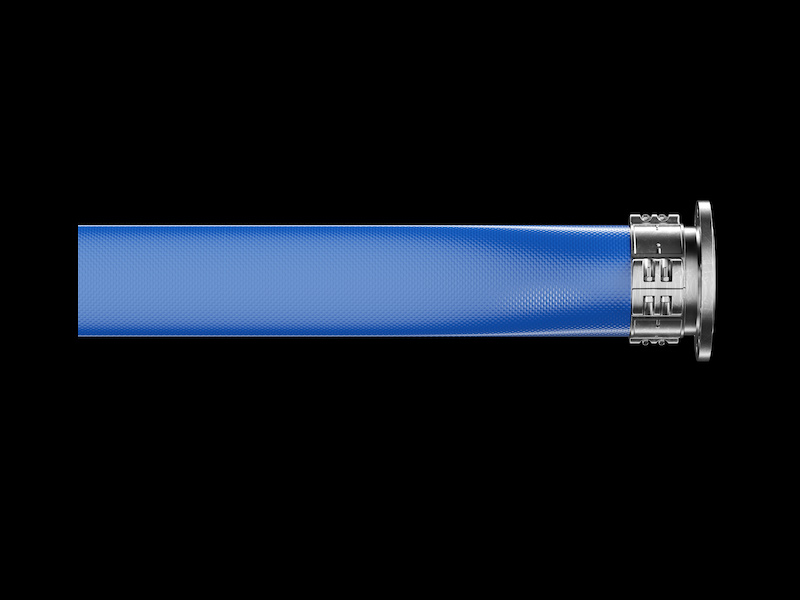

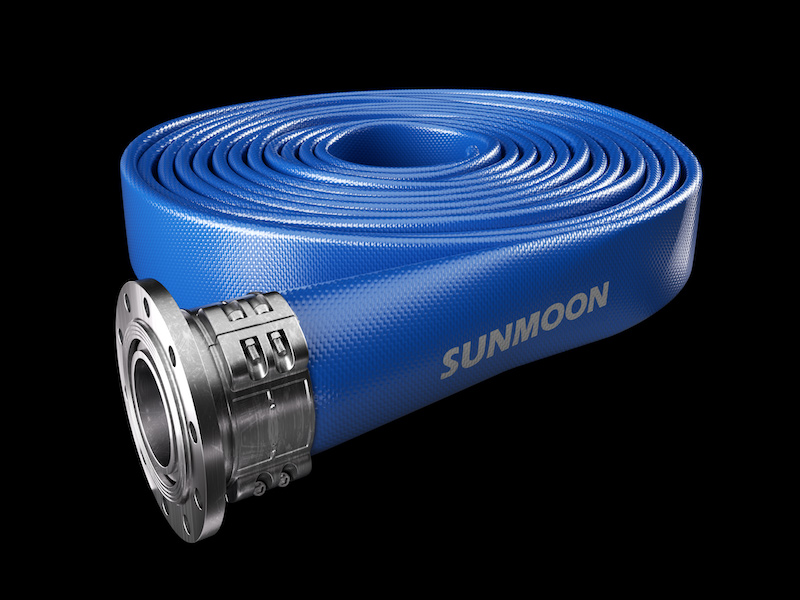

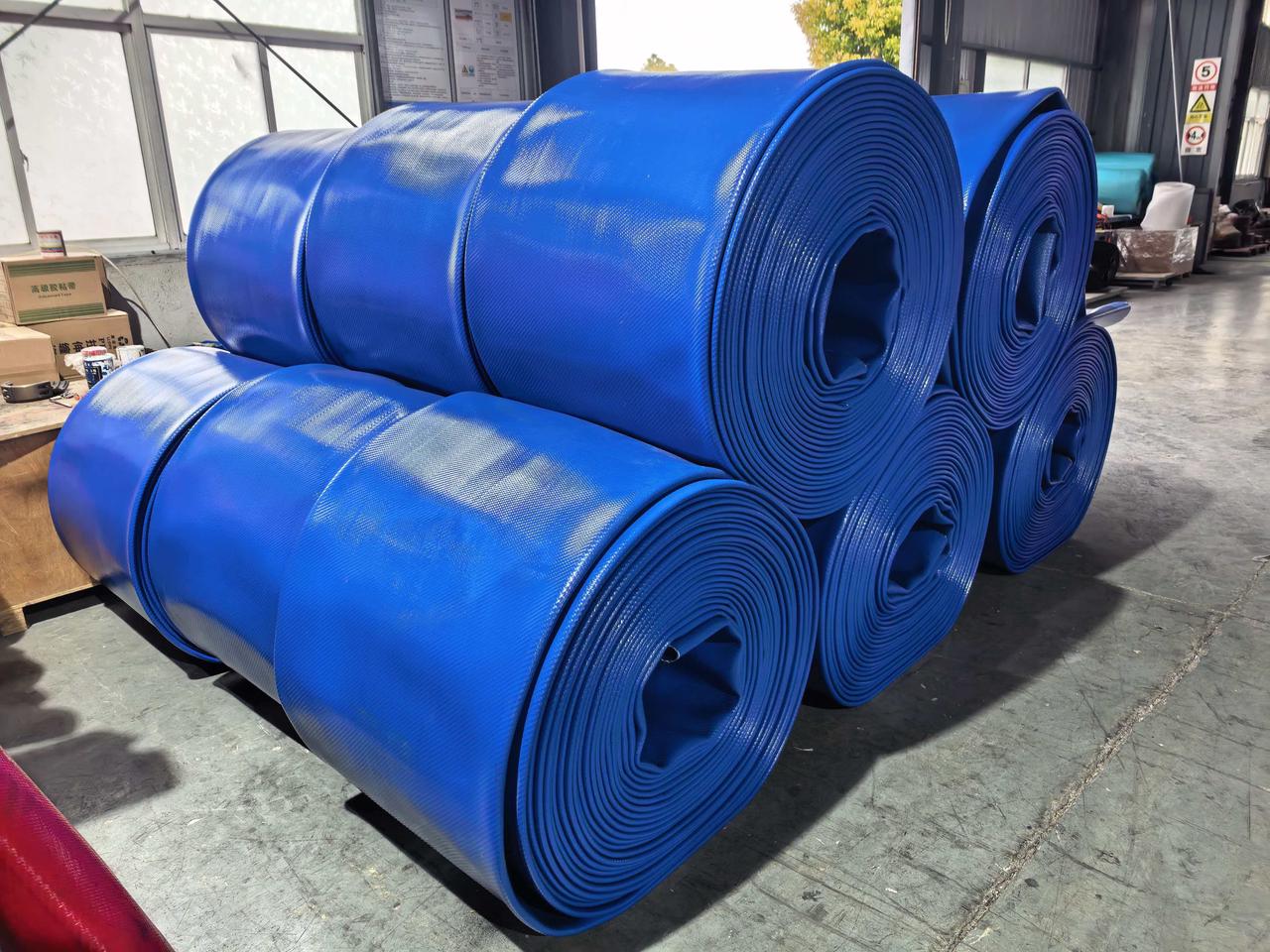

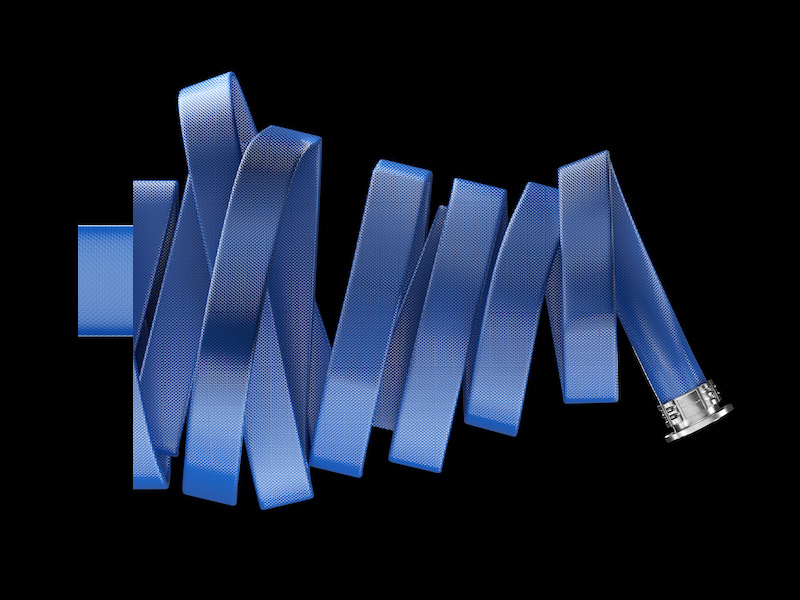

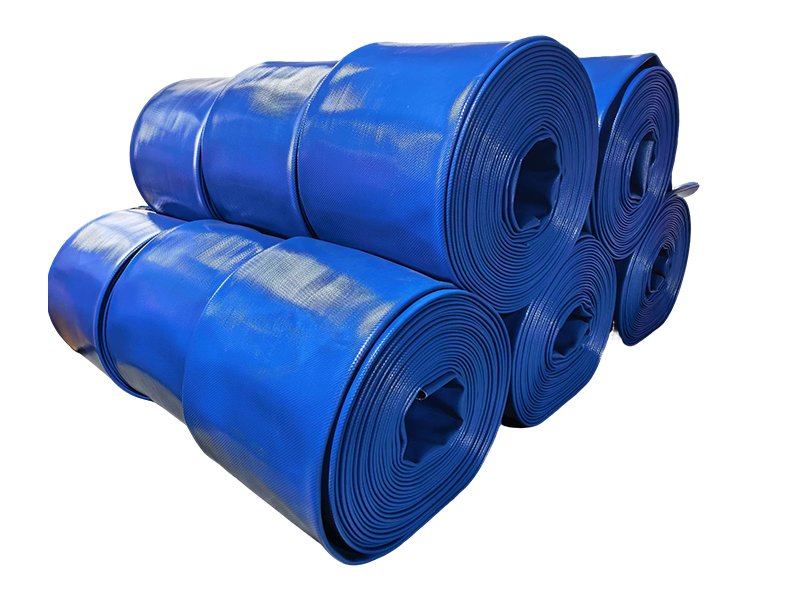

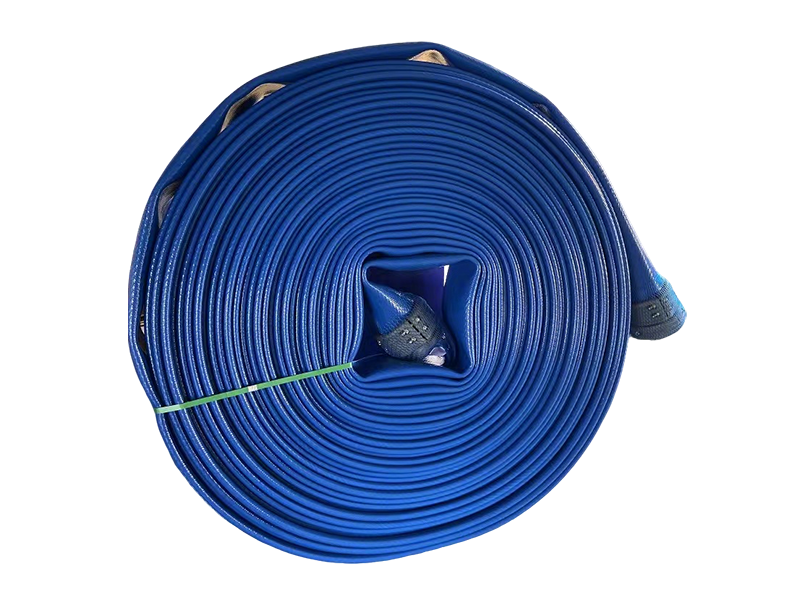

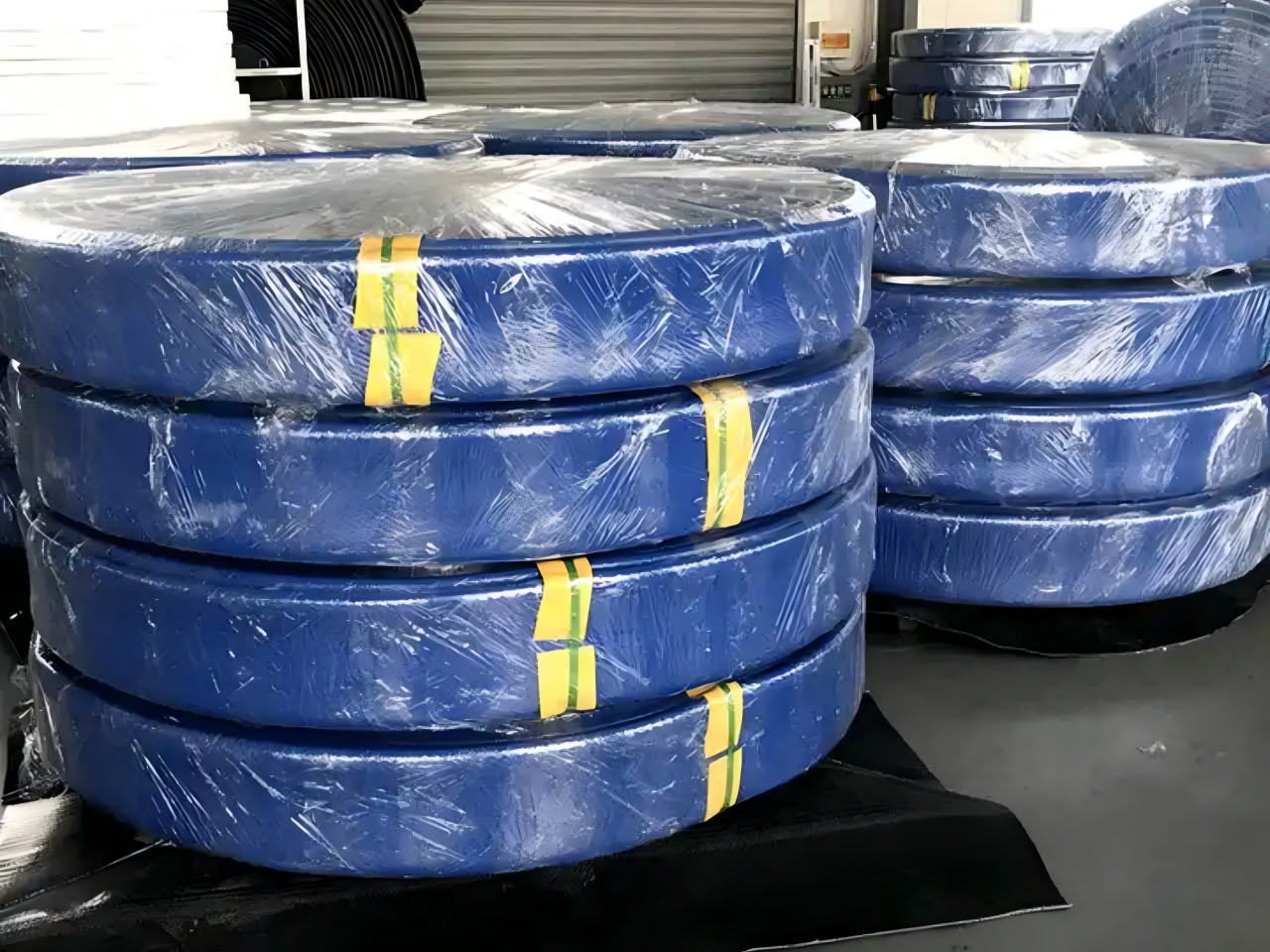

Dewatering Hose

Engineered for rapid-deployment fluid transfer across demanding operations—including mining dewatering, municipal flood relief, emergency firefighting, and more.

Home » Product Category » Dewatering Hose

Dewatering Hose

Sunmoon Hose Manufacturing

PRODUCT SPECIFICATIONS

Structure:

• Inner Tube: TPU
• Outer Cover: TPU
• Reinforcement: Circular-woven polyester jacket

• Operating Temperature Range: -60°F to 176°F (-50°C to 80°C)

* for coal mine emergency dewatering: Reinforcement: Circular-woven polyester jacket( With copper wire)

Specifications:

• Inside Diameter (ID): 4"–20"; larger sizes on request.
• Standard Color: Black; custom colors available.
• Standard Length: 660 ft (200 m); other lengths on request.
• Branding: Custom marking and private-label options available.
• End Fittings: Ultra-high-pressure stainless-steel mining couplings; forged aluminum couplings (other options on request).

MESSAGE

TECHNICAL DATA

ID		Tolerance	Thickness		Working Pressure	Bursting Pressure	Weight
inch	mm	mm	inch	mm	psi/bar	psi/bar	lbs/ft	kg/m

4"	100	102-104.5	0.110	2.80	150/10	450/30	0.685	1.02
4"	100	102-104.5	0.126	3.20	250/17	750/51	0.806	1.20
4"	100	102-104.5	0.150	3.80	300/20	900/60	0.941	1.40
4"	100	102-104.5	0.169	4.30	410/28	1230/84	1.109	1.65
4"	100	102-104.5	0.217	5.50	610/42	1830/126	1.331	1.98
5"	125	127-129	0.118	3.00	150/10	450/30	0.941	1.40
5"	125	127-129	0.126	3.20	200/14	600/42	1.075	1.60
6"	150	152-154	0.118	3.00	150/10	450/30	1.109	1.65
6"	150	152-154	0.138	3.50	200/14	600/42	1.277	1.90
6"	150	152-154	0.150	3.80	250/17	750/51	1.344	2.00
6"	150	152-154	0.161	4.10	300/20	900/60	1.613	2.40
6"	150	152-154	0.228	5.80	410/28	1230/84	2.150	3.20
6"	150	152-154	0.236	6.00	480/33	1440/100	2.285	3.40
8"	200	203.5-205.5	0.106	2.70	100/7	300/21	1.277	1.90
8"	200	203.5-205.5	0.134	3.40	150/10	450/30	1.546	2.30
8"	200	203.5-205.5	0.150	3.80	200/14	600/42	1.949	2.90
8"	200	203.5-205.5	0.165	4.20	250/17	750/51	2.150	3.20
8"	200	203.5-205.5	0.173	4.40	300/20	900/60	2.285	3.40
8"	200	203.5-205.5	0.224	5.70	410/28	1230/84	2.957	4.40
10"	250	254-257	0.102	2.60	70/5	210/15	1.680	2.50
10"	250	254-257	0.130	3.30	150/10	450/30	2.016	3.00
10"	250	254-257	0.157	4.00	200/14	600/42	2.554	3.80
10"	250	254-257	0.173	4.40	250/17	750/51	2.957	4.40
10"	250	254-257	0.193	4.90	300/20	900/60	3.360	5.00
12"	300	305-308	0.110	2.80	70/5	210/15	1.882	2.80
12"	300	305-308	0.161	4.10	150/10	450/30	2.957	4.40
12"	300	305-308	0.169	4.30	200/14	600/42	3.360	5.00
12"	300	305-308	0.197	5.00	250/17	750/51	3.696	5.50
12"	300	305-308	0.213	5.40	300/20	900/60	4.368	6.50
14"	350	359-364	0.165	4.20	150/10	450/30	3.696	5.50
14"	350	359-364	0.197	5.00	250/17	750/51	4.435	6.60
16"	400	412-417	0.130	3.30	100/7	300/21	3.226	4.80
16"	400	412-417	0.161	4.10	150/10	450/30	4.032	6.00
16"	400	412-417	0.220	5.60	200/14	600/42	5.242	7.80
20"	500	510-516	0.177	4.50	120/8	360/25	5.510	8.20

Specifications apply only to the hose. The potential working pressure may be lower than specified above for hose lines with

couplings due to the nominal pressure of the couplings or the type of assembly.
