In this guide, I will walk through the real‑world factors that control frac water transfer flow rate and show how a well‑engineered TPU frac water transfer hose system can solve the toughest water logistics challenges in shale gas fields. Drawing on Sunmoon's field cases and customer feedback, I'll also explain what to look for when selecting hoses and planning your line layout for maximum reliability and efficiency. [sunmoonhose]

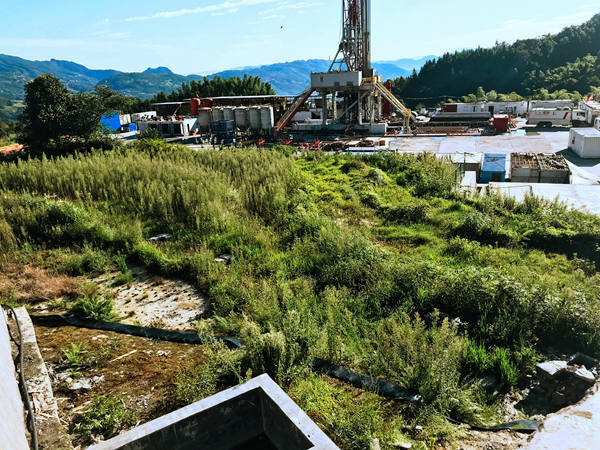

In Sichuan and other mountainous shale gas regions, water is abundant, but water sources are often far below and far away from the well pad. Elevation differences, steep slopes, and complex mountain roads make it hard to deliver the large volumes of water required for modern multi‑stage fracturing jobs. [sunmoonhose]
From an engineer's perspective, three realities dominate every job:
- Long distances and big elevation gains quickly eat up pump head and pressure.
- Multiple bends, temporary roads, and rough ground increase friction loss and risk of hose damage.
- High daily flow targets must be met reliably, often 24/7, to keep the frac spread working.
That is why frac water transfer hose design and routing are not just procurement decisions—they are critical engineering tasks.
From both theory and practice, hose diameter and inner wall smoothness are the two biggest design levers you have for increasing flow rate per line. [omnicalculator]
At a given pump rate, larger diameter hoses deliver much higher flow with lower friction loss. In hydraulic terms, friction loss is very sensitive to diameter: if you slightly increase the inner diameter, pressure loss per 100 m of hose can drop dramatically. [catpumps]
In the field, this means:
- 8" to 12" TPU layflat hose is common for long‑distance frac water transfer, especially on trunk lines. [jafirehose]
- Stepping down to smaller hose sections on the same line will choke the design flow and increase pressure drop. [omnicalculator]
Sunmoon's TPU frac water transfer hoses are available in large diameters (up to DN400 / 16") with high working pressure, allowing engineers to maintain high flow rates while keeping friction loss manageable on long transmission distances. [sunmoonlayflathose]
The rougher the inner surface of a hose, the more turbulence it creates, which translates directly into friction loss and wasted pump energy. [omnicalculator]

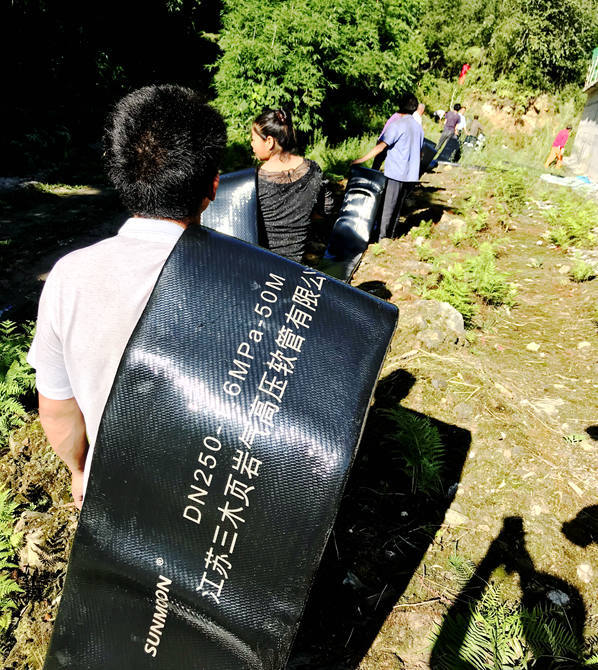

High‑quality through‑the‑weave extruded TPU layflat hose provides:
- Ultra‑smooth inner lining, which significantly reduces friction compared with conventional rubber or PVC hose. [jafirehose]
- Higher effective flow at the same pump pressure, or the same flow with lower energy consumption. [jafirehose]
In practice, many Sunmoon customers report that upgrading from mixed‑material hoses to smooth‑bore TPU frac hose allows them to either reduce pump load or add several hundred extra meters of transfer distance without sacrificing flow. [sunmoonlayflathose]
Even with the best hose, pump selection and wiring ultimately set your flow ceiling.
To hit the design flow, engineers must ensure:
- Rated pump flow ≥ design flow, with margin for friction losses and operational variability. [omnicalculator]
- Pump head (total dynamic head) > elevation difference + friction loss along the hose route. [catpumps]
In mountainous shale gas fields, the static lift between river valley and well pad can be significant, so pump head must be sized carefully. Undersized pump head is a common reason real‑world flow never reaches the design value.
From field experience, two points are often underestimated:
- Correct electrical wiring is essential; miswiring can cause pumps to run below their rated speed, silently reducing flow.
- When multiple pumps are used in parallel, the header and manifold design must minimize turbulence and sudden diameter changes. [catpumps]
Poorly designed manifolds create local turbulence and additional head loss, so the system never reaches the theoretical combined flow of all pumps.
A well‑designed routing plan can deliver surprisingly large efficiency gains—even with the same hose and pumps.
Every bend in a hose adds localized friction loss. Tight bends and kinks are especially harmful, increasing turbulence and reducing effective flow area. [ntrs.nasa]
To manage this in the field:
- Use metal elbows or rigid fittings when a large change in direction is unavoidable.
- Avoid forcing the hose into flattened or pinched bends, which can dramatically reduce flow and damage the hose over time.
- Maintain manufacturer‑recommended minimum bend radius for TPU layflat hose to preserve both flow and hose life. [sunmoonhose]
From a system perspective:
- Shorter total route length = lower friction loss at the same flow rate. [catpumps]
- Maintain a consistent diameter along the main line; avoid mixing in smaller‑bore sections that will throttle the design capacity. [jafirehose]
Experienced field managers at Sunmoon typically walk potential routes multiple times before final deployment to select paths with fewer turns, smoother elevation changes, and less risk of mechanical damage from vehicles or rock edges. [sunmoonhose]
In shale gas fracturing, the hose is exposed to high pressure, abrasive solids, and chemically complex fluids. Polyurethane (TPU) layflat hose has proven to be one of the most effective solutions for these conditions. [sunmoonhose]
Compared with steel pipe, PVC or conventional rubber hose, high‑pressure wear‑resistant polyurethane frac hose offers: [sunmoonhose]
- Light weight and flexible handling, enabling faster deployment and retrieval over rough terrain.
- High working pressure (typically 200–300 psi for shale gas transfer, depending on diameter). [jafirehose]
- Excellent abrasion resistance, with TPU demonstrated to withstand up to 50 times more abrasion than PVC in comparative testing. [jafirehose]
- Strong chemical resistance, suitable for fresh water, produced water, and fluids containing fracking additives. [sunmoonhose]
- Coilability and compact transport volume, allowing long lengths to be moved efficiently by truck. [jafirehose]
These characteristics are particularly important in remote shale gas blocks where access roads are narrow and unstable, and rapid mobilization is essential to keep frac operations on schedule.
High‑quality TPU frac hose is designed not to leach contaminants into the conveyed fluid, supporting environmentally responsible water handling. Its combination of durability and high conveying efficiency also reduces: [sunmoonhose]
- Leak risk and maintenance frequency.
- Total energy consumption per cubic meter of water delivered, thanks to smoother inner walls and lower friction loss. [omnicalculator]
Sunmoon is a specialized engineering manufacturer of TPU layflat hoses with a strong focus on oil and gas, frac water transfer, and dewatering applications. [sunmoonhose]
Since its founding in 2011, Sunmoon has built a factory‑direct model that gives contractors and operators better control over both technical specs and inventory planning: [instagram]
- End‑to‑end control of the production process, from yarn weaving to TPU extrusion.
- Custom diameter, wall thickness, and pressure rating options for different field conditions. [alibaba]
- Direct shipping from China, which often reduces warehousing costs compared with buying from third‑party distributors. [facebook]
Real‑world customer feedback frequently highlights consistent quality, low elongation under pressure, and reliable field performance in long‑distance transfers. [instagram]
Sunmoon's frac water transfer hose line is specifically engineered for high flow, long runs, and demanding terrain: [instagram]
- Composite TPU layflat construction with through‑the‑weave extrusion for strong bonding and resistance to delamination. [sunmoonhose]
- Low stretch (low elongation) at working pressure, which helps maintain stable routing and makes pressure control more predictable. [instagram]
- High abrasion‑resistant outer cover, suitable for dragging across soil, rock, and road crossings. [jafirehose]
From an industry engineer's point of view, if you want to maximize flow while minimizing energy consumption and failure risk, you can follow a simple 7‑step checklist:
1. Analyze elevation and distance
- Map total length and elevation gain between water source and frac pad. [omnicalculator]
2. Choose hose diameter and pressure rating
- Use large‑diameter TPU layflat hose on main trunks (8–12"). [alibaba]
- Ensure working pressure safely exceeds expected operating pressure. [sunmoonhose]
3. Specify smooth‑bore TPU hose
- Prioritize ultra‑smooth inner surfaces to reduce friction loss. [omnicalculator]
- Confirm abrasion and chemical resistance for your fluid type. [jafirehose]
4. Size pumps for both flow and head
- Match rated flow to design flow with reasonable safety margin. [omnicalculator]
- Calculate head requirement: elevation + friction loss + safety factor. [catpumps]
5. Design manifolds and headers properly
- Avoid abrupt diameter changes.
- Use streamlined fittings to minimize turbulence where pumps operate in parallel. [catpumps]
6. Optimize routing and bend management
- Walk routes, pick the shortest feasible line with fewer bends. [sunmoonhose]
- Use metal elbows at large turns and respect minimum bend radius. [ntrs.nasa]
7. Plan for deployment and retrieval
- Use coilable TPU hose to speed up mobilization and demobilization. [jafirehose]
- Protect hose at road crossings and high‑traffic areas to prevent mechanical damage.
Applying this checklist, many operators see both higher effective flow and noticeable reductions in power consumption per cubic meter pumped, especially in long‑run systems. [omnicalculator]
Below is a concise table summarizing how each major factor affects frac water transfer performance:
| Design factor | Practical impact on flow and cost |
|---|---|
| Hose diameter | Larger diameter drastically reduces friction loss and increases flow. (omnicalculator) |
| Inner wall smoothness | Smooth TPU bore cuts turbulence and pump energy use. (omnicalculator) |
| Hose material (TPU vs others) | TPU offers higher abrasion and chemical resistance, longer life. (jafirehose) |
| Pump head and flow rating | Sets maximum achievable flow over given distance and elevation. (omnicalculator) |
| Route length and bend count | Shorter, straighter routes deliver more flow at lower pressure. (omnicalculator) |
| Manifolds and connections | Poor design causes extra turbulence and pressure loss. (omnicalculator) |
If you are planning or upgrading a frac water transfer system—especially in mountainous or hard‑to‑access shale gas basins—it is worth evaluating whether your current hose and routing design are limiting your flow and driving up pump energy costs.
Sunmoon's engineering team can help you:
- Review your target flow rate, route length, and elevation profile.
- Recommend optimal TPU hose diameters and pressure ratings for each segment.
- Design a hose layout and pump configuration that balances flow, safety, and cost.
You can learn more about high‑pressure polyurethane frac hoses for shale gas exploitation and request customized specifications on Sunmoon's official website. [sunmoonlayflathose]
As a rule of thumb, pick the largest practical diameter that your pumps and budget can support, especially for long trunk lines. Larger diameter significantly reduces friction loss and allows higher flow at the same pressure, which is critical when transferring water over long distances and large elevation changes. [catpumps]
TPU layflat hose offers superior abrasion resistance, higher pressure capability, and better chemical resistance compared with PVC and many conventional rubber hoses. It is also lighter and fully coilable, which makes it easier to deploy and retrieve in rugged shale gas environments. [sunmoonhose]
Every bend increases turbulence and friction loss, especially tight bends or kinks that distort the hose cross‑section. This reduces effective flow rate and can damage the hose over time, which is why engineers use metal elbows and adequate bend radius at critical points in the line. [ntrs.nasa]
You should prepare target flow rate, fluid type, total transfer distance, elevation difference, expected working pressure, and site layout constraints. Providing this data allows engineering‑focused manufacturers like Sunmoon to recommend hoses and system designs that match your real operating conditions. [sunmoonhose]
Yes. High‑pressure wear‑resistant polyurethane frac hose is designed to handle water containing dissolved solids, trace hydrocarbons, and typical fracturing additives without swelling or serious degradation. Its chemical resistance is one of the main reasons it has become a standard solution in shale gas water transfer. [jafirehose]
