In large‑scale frac water transfer projects, the hose itself is only half the story—the other half is how you connect it safely and efficiently to water pumps and steel pipelines. As a Chinese manufacturer specializing in TPU frac water transfer hose and polyurethane layflat hose, Sunmoon has seen that most failures, leaks, and downtime are caused by poor connection design rather than hose quality. [sunmoonhose]
This guide explains, from both an engineer's and field operator's perspective, how to connect polyurethane layflat hose to pump outlets and steel pipe using three main methods—threaded fittings, flanged joints, and clamp (hose clamp) connections—and how to choose the right solution for your project.
Polyurethane layflat hose (often TPU layflat hose) is a high‑pressure, abrasion‑resistant, flat coil hose widely used for frac water transfer, mine dewatering, municipal emergency water supply, and agricultural water delivery. [asoehose]
Key characteristics:
- Flat‑to‑round structure: Stores as a flat coil, becomes round under pressure. [irrigationsupplyparts]
- High tensile strength and abrasion resistance: Designed for rough terrain, dragging, and long‑distance layouts in oilfields. [hosecraftusa]
- Wide temperature range: TPU layflat hoses typically work from around −50 °C to 80 °C, covering most frac and industrial environments. [sunhose]
- Long continuous lengths: Can be supplied in long reels (up to hundreds of meters), reducing the number of joints in water transfer lines. [blog.mccrometer]
For frac water transfer, this type of hose must connect securely to pump outlets, manifolds, steel header lines, and wellsite equipment. [blog.mccrometer]
From a practical engineering standpoint, connecting soft polyurethane hose to rigid steel pipe or a pump flange raises three immediate challenges:
- The hose cannot be welded; it must rely on mechanical fittings and clamping forces.
- The connection must withstand high working pressure and frequent pressure pulses during fracking operations. [furexenergy]
- The assembly must be easy to install, move, and disassemble in the field, often under time pressure and harsh conditions. [hondotx]
As a manufacturer, Sunmoon solves this by offering engineered hose ends—threaded, flanged, or clamped—that match typical ANSI/ASME flanges, threaded pipe ends, and customized steel pipeline interfaces used in global oilfields. [instagram]
With this method, the polyurethane layflat hose is terminated with a hose coupling (hose tail with threaded end), while the steel pipe end is equipped with a matching threaded connector (pipe nipple or union) that is welded or screwed to the pipe. [orientflexhose]
Typical assembly:
1. Install a hose coupling at the end of the layflat hose.
2. Weld or screw a threaded adapter onto the steel pipe end.
3. Use a threaded union or direct threaded connection to join the hose coupling and the pipe adapter. [hosecraftusa]
- Highly convenient for repeated assembly and disassembly: Crews can quickly unscrew the joint during relocation or line re‑routing. [hondotx]
- Good compatibility: Thread standards (e.g., NPT, BSP) allow connection to common steel pipe fittings, valves, and flow meters. [orientflexhose]
- Flexible system design: Easy to insert additional equipment such as flow meters, check valves, or pressure relief valves in threaded sections. [irrigationsupplyparts]
- Additional intermediate pieces: Every extra coupling introduces another potential leak point and mechanical weak link. [furexenergy]
- Slightly higher system cost: More fittings and unions increase material and labor costs. [hosecraftusa]
- Thread damage risk: Frequent assembly/disassembly in dusty or muddy environments can damage threads if not cleaned and lubricated. [furexenergy]
Threaded connections are recommended when:
- The project requires frequent system changes or relocations (typical in multi‑well pad frac operations). [hondotx]
- The site has many steel pipe branches and you need flexible, modular interfaces.
- You need to integrate instrumentation or valves easily into the line. [blog.mccrometer]

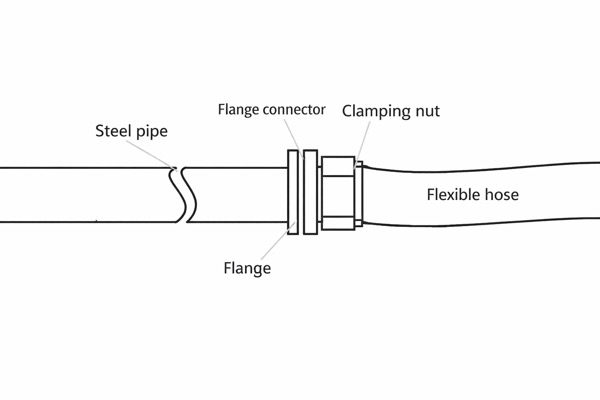

In a typical flanged system, the polyurethane layflat hose is terminated with a hose flange coupling, and the steel pipe or pump outlet is equipped with a matching standard flange. [patents.google]
Assembly steps:
1. Sunmoon installs a factory‑crimped flange coupling on the hose end. [sunmoonhose]
2. The steel pipe end or pump outlet already has a weld neck or slip‑on flange. [patents.google]
3. A gasket is placed between the two flanges, then bolts and nuts are tightened in a cross pattern to ensure uniform sealing pressure. [patents.google]
- Very stable mechanical connection: Flange‑to‑flange joints handle high pressure and dynamic loads better than most quick connections. [irrigationsupplyparts]
- Compatible with pump outlets: Most industrial and frac pumps leave the factory with flanged outlets, meaning you can connect directly without modification. [patents.google]
- Excellent sealing performance when installed with proper gaskets and torque, minimizing leakage risk in high‑pressure water transfer. [furexenergy]
- Heavier fittings: Flange couplings are significantly heavier than simple threaded or clamp fittings, which increases handling and transport workload. [hosecraftusa]
- Longer installation time: Technicians must align flanges, place gaskets, and tighten multiple bolts—this takes more time than simply tightening a union or clamp. [patents.google]
- More tools and crew required: Proper flange tightening often needs torque wrenches and at least two workers, especially on large‑diameter hoses. [irrigationsupplyparts]
Flange connections are ideal when:
- You are connecting directly to pump outlets or manifolds that already have flanges. [furexenergy]
- The system operates at higher pressures and requires maximum connection stability. [hosecraftusa]
- The line will remain in semi‑permanent or long‑term layout, where convenience of daily disassembly is less important.
Clamp connection (often called hose clamp, band clamp, or hose clip connection) is a more "field‑fabricated" solution. It requires modifying the steel pipe end, then sliding the polyurethane layflat hose over the pipe and securing it with one or more heavy‑duty clamps. [orientflexhose]
Typical steps:
1. Machine or grind the steel pipe end so that it is round, smooth, and free of sharp edges. [orientflexhose]
2. Slide the hose end over the steel pipe end.
3. Install one or multiple high‑strength clamps over the hose, tightening them to generate enough radial pressure to hold the hose in place. [orientflexhose]
In some cases, a barbed pipe end or beaded end may be used to improve grip. [irrigationsupplyparts]
- Lowest material cost: Clamps and simple steel pipes are cheaper than engineered hose couplings and flanges. [orientflexhose]
- Suitable for on‑site fabrication: If the job site has welding and machining capacity, crews can modify steel pipe ends locally and adapt to unforeseen layout changes. [furexenergy]
- Fast prototyping and emergency repair: When a standard fitting is damaged or missing, clamp connections can be used as a temporary or emergency solution.
- Depends heavily on workmanship: If the pipe end is not perfectly round, or if clamps are not tightened evenly, the connection can slip or leak under pressure. [furexenergy]
- Not ideal for very high pressure without reinforced designs or multiple clamps. [irrigationsupplyparts]
- Less convenient to adjust: Loosening and re‑tightening several heavy clamps is more laborious than handling a union or quick coupling.
Clamp connections are mainly recommended for:
- Budget‑sensitive projects where cost is the top priority and pressure levels are moderate.
- Locations with strong on‑site machining capability but limited access to specialized hose fittings.
- Short‑term, low‑risk segments of a line or backup/emergency use.
Below is a practical comparison to help engineers and project managers choose the right solution for polyurethane frac water transfer hose to steel pipe or pump outlet connections.
| Connection type | Mechanical stability | Installation speed | Cost level | Typical use case | Key note |
|---|---|---|---|---|---|
| Threaded fitting | Medium–high (irrigationsupplyparts) | Fast (hondotx) | Medium (hosecraftusa) | Modular lines, frequent relocation (hondotx) | Best balance of flexibility and reliability |
| Flange connection | Very high (irrigationsupplyparts) | Medium–slow (furexenergy) | Medium–high (hosecraftusa) | Pump outlets, high‑pressure header lines (patents.google) | Preferred for critical high‑pressure joints |
| Clamp connection | Low–medium (irrigationsupplyparts) | Medium (orientflexhose) | Low (orientflexhose) | Budget projects, emergency fixes (orientflexhose) | Strongly dependent on workmanship |
From an oilfield operations viewpoint, many operators will standardize on flanged hose ends at pumps and manifolds, while using threaded or grooved couplings further down the line for flexibility. [patents.google]
Drawing on both manufacturer experience and industry best practices for frac hose systems, the following checklist helps you build safer and more reliable connections. [hondotx]
- Check the hose outer cover for cuts, deep abrasions, or bulges. [irrigationsupplyparts]
- Confirm that fittings (threads or flanges) match the pipe or pump in size, pressure rating, and standard. [hosecraftusa]
- Inspect steel pipe ends for roundness, burrs, and corrosion; correct defects before installing. [orientflexhose]
- Use flange connections for pump outlets and critical high‑pressure joints. [patents.google]
- Use threaded fittings where the line layout needs frequent adjustment or connection to valves and instruments. [blog.mccrometer]
- Use clamp connections only when pressure is moderate and field fabrication is necessary, and preferably in non‑critical segments. [orientflexhose]
1. Clean both flange faces and ensure the gasket is free from damage. [furexenergy]
2. Align flanges so that bolt holes match without forcing.
3. Insert bolts and tighten crosswise (star pattern) to reach recommended torque. [furexenergy]
4. Pressurize the system slowly and check for leaks at low pressure before going to full operating pressure. [irrigationsupplyparts]
For threaded connections, apply appropriate thread sealant or PTFE tape if required, and avoid over‑torque that might crack fittings or deform the hose coupling. [hosecraftusa]
For clamp connections, make sure:
- The hose fully covers the machined pipe end. [orientflexhose]
- Clamps are high‑strength and corrosion‑resistant, and installed in double or triple rows for larger diameters or higher pressures. [irrigationsupplyparts]
- After installation, conduct a pressure test according to your company standard or local regulations. [furexenergy]
- During operation, regularly patrol the line, focusing on connection points, bends, and road crossings. [hondotx]
- If you see seepage, abnormal noise, or hose movement, depressurize and repair immediately.
Jiangsu Sunmoon Shale Gas High Pressure Hose Co., Ltd. is a specialized Chinese manufacturer integrating design, production, and sales of high‑pressure TPU and PE layflat hoses for shale gas, mining, agriculture, and emergency water supply. [instagram]
From a buyer's point of view, what sets Sunmoon apart in frac water transfer applications is:
- Full range of specifications: Sizes suitable for source‑to‑pit, pit‑to‑pit, and pit‑to‑well transfer lines, supporting long‑distance, high‑flow projects. [acefluids]
- Customized hose ends and connection solutions: Flanged, threaded, grooved, and other fittings designed to integrate with different regional standards and site layouts. [sunmoonhose]
- Balanced performance and cost: High‑performance TPU layflat construction with abrasion and chemical resistance at a competitive price for international markets. [asoehose]
- Field‑oriented design philosophy: The entire production process is managed with frac water transfer realities in mind—dragging over rough ground, rapid deployment, and frequent relocation. [instagram]
For many overseas customers, this means you can source ready‑to‑deploy hose assemblies that arrive with pre‑installed connections engineered for your pump and pipe configurations, rather than piecing the system together on site.
From years of field feedback, several simple practices dramatically extend the life of both hoses and their connections:
- Avoid sharp bends at the connection: Use a minimum bend radius and consider support cradles or ramps where hoses change direction or cross roads. [irrigationsupplyparts]
- Protect against abrasion: At contact points with rocks, steel edges, or concrete, add protective sleeves or pads. [irrigationsupplyparts]
- Keep threads and flange faces clean: Dirt and sand trapped in threads or gaskets are a common cause of leaks. [orientflexhose]
- Document torque and pressure test results: Treat critical joints like any other pressure vessel interface and keep records. [furexenergy]
These habits cost very little but can significantly reduce unplanned downtime and hose replacement frequency.
Choosing between threaded, flanged, and clamp connections is not just a technical decision—it directly affects safety, deployment speed, and total project cost. If you share your pump model, pipeline design, working pressure, and typical relocation frequency, Sunmoon's engineering team can recommend:
- The best connection combination for different parts of your line
- Suitable hose type, diameter, and length packages
- A customized set of hose assemblies delivered ready to install
If you are planning a frac water transfer or large‑scale water supply project, contact Sunmoon to discuss a custom hose and connection solution optimized for your field conditions and budget. [instagram]
If you need maximum stability and are connecting directly to a pump or high‑pressure manifold, flanged connections are usually the first choice. If your system requires frequent layout changes, integration of valves, and flexible branching, threaded fittings often provide a better balance of convenience and reliability. [hondotx]
Clamp connections can be safe at moderate pressures if the pipe end is properly prepared and multiple heavy‑duty clamps are used. For high‑pressure and critical sections, manufacturers and industry guidelines generally recommend flanged or engineered threaded connections for better mechanical security. [orientflexhose]
Typically, Sunmoon engineers will ask for working pressure, fluid type, temperature, desired flow rate, pump outlet standard, pipe size and standard, and expected line length. With this data, they can propose appropriate hose diameter, wall thickness, material, and connection type, along with recommended safety factors. [sunhose]
Use matching, high‑quality fittings and gaskets, follow proper tightening procedures, and perform a pressure test before full‑scale operation. Regular inspection during operation and timely replacement of worn gaskets or damaged couplings are equally important. [hondotx]
Yes, high‑quality TPU layflat hoses are designed to work at sub‑zero temperatures, often down to about −50 °C, while maintaining flexibility and pressure resistance. In extremely cold environments, gradual pressurization and proper storage further reduce the risk of damage. [asoehose]
