Choosing the right hydraulic hose can make or break the performance of your system. This guide explains everything you need to know about 2-wire and 4-wire hydraulic hoses, helping you select the best one for your specific pressure, environment, and operational requirements.
A hydraulic hose is a flexible conduit designed to transport pressurized fluid between hydraulic components. It must endure extreme pressure, pulsation, and varying temperatures while maintaining its structural integrity.
- Inner tube: Compatible with the fluid in use.
- Reinforcement layers: Steel wire braids or spirals providing strength.
- Outer cover: Protects against abrasion, weather, and chemicals.

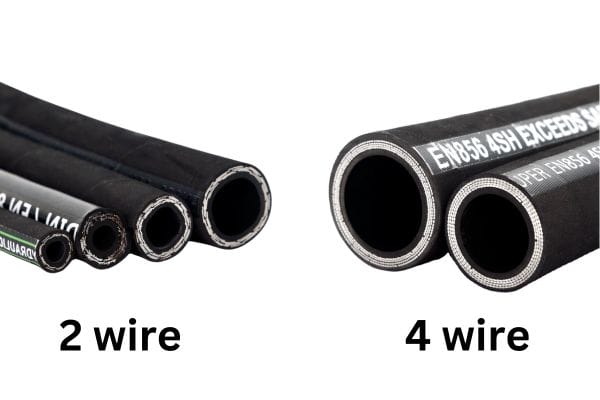

The difference between 2-wire and 4-wire hoses lies primarily in their reinforcement design and ability to handle pressure and impulse.
A 2-wire hydraulic hose features two braided layers of high-tensile steel wire reinforcement around a synthetic rubber inner tube, offering a balance between flexibility, performance, and affordability.
- Two braided steel wire layers
- Standards: SAE 100R2AT, EN 853 2SN, EN 857 2SC
- Pressure rating: Typically 2,000–6,000 psi, depending on size
- Temperature range: −40°C to +100°C
- Flexible and lightweight, ideal for tight installation areas.
- Cost-effective compared to 4-wire designs.
- Provides strong performance for medium-pressure systems.
- Agricultural machinery
- Material handling systems
- Industrial manufacturing lines
- Mid-pressure hydraulic circuits on construction equipment
A 2-wire hose is best suited where system pressure is moderate and continuous movement or flexibility is essential.
A 4-wire hydraulic hose contains four layers of spiral-wound steel wire, providing superior strength and resistance to high impulse pressure. It is designed for demanding applications where durability and uptime are critical.
- Four spiral-wound reinforcement layers
- Often meets EN 856 4SP/4SH and SAE 100R12 standards
- Typical working pressure: 5,000–6,000+ psi
- Designed for extreme-duty, high-impulse environments
- Exceptionally strong and long-lasting under severe conditions.
- Greater abrasion, corrosion, and pressure resistance.
- Reduced failure risk and enhanced safety margin.
- Heavy-duty construction and mining machinery
- Industrial presses and hydraulic injection systems
- Off-highway vehicles with high impulse cycles
When operating in high-pressure, high-impulse systems, a 4-wire hose provides reliability that prevents unplanned downtime.
Feature | 2-Wire Hose | 4-Wire Hose |
Reinforcement | Two braided steel wire layers | Four spiral-wound steel wire layers |
Pressure rating | Medium to high (2,000–6,000 psi) | High to very high (5,000–6,000+ psi) |
Flexibility | More flexible | More rigid |
Weight | Lightweight | Heavier |
Durability | Good for standard use | Excellent for extreme environments |
Impulse life | Moderate | Long and robust |
Common applications | Agriculture, industry | Mining, construction, heavy equipment |
Cost | Lower initial cost | Higher cost but better lifecycle value |
Use the STEP approach to simplify your selection process.
Match the hose type to your working pressure and expected impulse.
- Choose 2-wire for medium pressure with limited pulses.
- Choose 4-wire for high-intensity, repetitive cycles.
Ensure compatibility between your hose's temperature range and working environment. For high heat or abrasive conditions, use tougher 4-wire covers.
If your application requires frequent movement or tight routing, a 2-wire hose provides better flexibility.
For demanding operations, 4-wire hoses often provide the best long-term return on investment due to their superior durability and reduced downtime.
Avoid these typical errors when specifying your hydraulic hose:
- Choosing by price only: Leads to frequent replacement and performance loss.
- Ignoring bend radius limits: Causes premature wear and failure.
- Over-specifying reinforcement: Adds unnecessary stiffness and cost.
- Incorrect fluid compatibility: Causes inner tube degradation.
- Neglecting abrasion protection: Shortens hose lifespan in rugged environments.
A construction contractor used 2-wire hoses on excavator boom lines operating in rocky terrain. Frequent pressure surges led to failures every few months.
Switching to 4-wire spiral hoses with abrasion-resistant outer covers reduced unscheduled replacements by over 60% and improved uptime dramatically.
1. Avoid twisting, crushing, or overstressing the hose.
2. Observe minimum bend radius to prevent fatigue.
3. Secure hoses properly using guides or clamps.
4. Allow for movement slack without tension.
- Inspect regularly for cracks, leaks, or exposed reinforcement.
- Replace damaged hoses immediately.
- Maintain fitting cleanliness and check for corrosion.
- Keep maintenance logs for tracking wear patterns.
A proactive schedule ensures consistent safety, performance, and cost efficiency.
Selecting the correct hydraulic hose is not just about specification—it's about efficiency, reliability, and safety. Whether you need the flexibility of a 2-wire hose or the heavy-duty performance of a 4-wire spiral design, ensure your system is fully optimized for pressure, impulse, and durability.
Get in touch with our engineering support team today to receive personalized recommendations, specification reviews, or sample sets that fit your machinery and application needs. Start improving your system's safety and uptime now.
The key difference lies in the number of steel reinforcement layers. 2-wire hoses use two braided layers, while 4-wire hoses use four spiral-wound layers for greater pressure and impulse durability.
2-wire hoses are more flexible because of their braided reinforcement pattern, allowing tighter bend radii compared to the stiffer spiral design of 4-wire hoses.
Use 4-wire hoses in high-pressure, high-impulse, or heavy-duty applications such as mining, construction, and industrial presses where safety and longevity are critical.
Not necessarily. While it increases pressure capacity, more reinforcement adds weight and stiffness. The best hose is the one that exactly meets system demands with an adequate safety margin.
Replacement frequency depends on operating conditions, maintenance, and visible wear. Replace immediately when showing cracks, leaks, or exposed reinforcement, or as per OEM maintenance schedules.
