Acid mine drainage (AMD) is one of the toughest water-transfer environments in mining, and TPU layflat hoses are now the reference solution for safe, efficient handling of corrosive flows when they are correctly specified and installed. This guide combines field experience from mine dewatering projects with current hose technology to help engineers and procurement teams confidently select TPU layflat hoses for AMD and other corrosive water transfer tasks. [zyfire]
Acid mine drainage occurs when sulfide minerals such as pyrite react with water and oxygen, generating acidic water rich in dissolved metals and sulfates. In open-pit and underground mines, this water must be continuously pumped from pits, galleries, and waste rock dumps to treatment facilities or containment ponds. [products.kuriyama]
In these conditions, hose failures can quickly become expensive and unsafe: leaks contaminate soil and surface water, unplanned downtime delays production, and emergency repairs in remote pits increase operational risk. Traditional PVC or rubber discharge hoses often cannot withstand the combination of low pH, dissolved metals, high abrasion, and long pumping distances typical of AMD operations. [layflat.midwesthose]

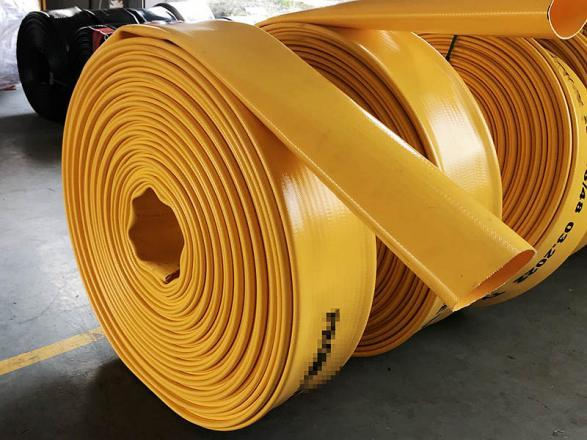

Thermoplastic polyurethane (TPU) layflat hose is an extruded hose with a TPU cover and liner bonded through a high‑tenacity woven reinforcement, typically polyester or similar filament yarn. Thanks to the "extrusion through-the-weave" process, the TPU jacket encapsulates the reinforcement, creating a single, unified hose wall with excellent mechanical and chemical performance. [sunhose]
Key advantages of TPU layflat hose for AMD and corrosive water transfer include: [puck]
- High chemical resistance to many acids, salts, and hydrocarbons commonly present in mine water.
- Exceptional abrasion resistance, ideal for water carrying fines, sand, or grit from haul roads and benches.
- UV and hydrolysis resistance, extending service life in exposed open-pit environments.
- Wide temperature range (often from approximately −50 °C to +80 °C depending on design), suitable for cold climates and warm process waters. [zyfire]
- Lightweight, compact and easy to deploy in long lengths using hose-reel systems or simple handling equipment. [hosecraftusa]
For AMD projects, this balance of chemical, mechanical, and handling performance is why more operators are replacing rigid pipe and traditional rubber hoses with customized TPU layflat systems. [sunmoonhose]
When you specify TPU layflat hose for acid mine drainage, you are making a system decision, not just a component purchase. Three primary dimensions drive long-term success: [teknikum]
1. Fluid chemistry and temperature
2. Pressure, elevation and flow regime
3. Installation layout and handling strategy
Even within a single mine, AMD composition can vary by pit, depth, and season. A structured water profile is essential before final hose selection: [products.kuriyama]
- pH range: Typical AMD is between pH 2 and 4, but excursions lower than 2 may occur near active oxidation fronts. [teknikum]
- Dissolved metals: Iron, aluminum, manganese and other metals influence corrosion potential and scaling.
- Sulphate concentration: High sulphate content increases ionic strength and can impact long‑term material compatibility.
- Suspended solids: Fine tailings and rock dust dramatically increase abrasion inside the hose.
- Temperature: Blending of warm underground water with colder surface inflows changes viscosity and hose expansion.
Most mining-grade TPU layflat hoses are formulated for acidic and saline water, but it is critical to confirm compatibility charts and, for extreme conditions, run laboratory immersion tests or field trials with your specific water sample. [zyfire]
Mining dewatering and AMD control usually involve long discharge runs with variable static head and pump pressures. To avoid burst failures or excessive elongation, you should: [layflat.midwesthose]
- Calculate maximum operating pressure (MOP), including static head, friction losses, and transient surges.
- Select a hose rated at least 1.5–2.0× MOP depending on your risk policy and pump control strategy. [zyfire]
- Choose ID (inner diameter) to keep fluid velocity within a safe window, often 1.5–3.0 m/s for dirty water, to balance turbulence and abrasion. [zyfire]
- Confirm minimum burst pressure and safety factors in the manufacturer's datasheet for each hose size. [sunhose]
In practice, many AMD lines use 4–10 inch TPU layflat hose with service pressures of roughly 150–300 psi, though smaller sizes are common for sump pumps and localized drainage. [hosecraftusa]
The same TPU compound can be produced with different wall thicknesses, reinforcement densities, and outer cover designs. For corrosive mine water transfer: [sunmoonhose]
- Use thicker outer covers in haul roads or areas with sharp rock, heavy vehicle crossings, or frequent dragging. [puck]
- Specify ribbed covers in muddy slopes where grip and abrasion resistance are critical. [zyfire]
- Select continuous lengths up to several hundred meters, reducing couplings that can become leak points. [hosecraftusa]
- Consider custom colors or "glow line" features for night visibility and safety. [sunmoonhose]
To make hose selection actionable, many engineers follow a simple, repeatable process that combines hydraulic calculation with on‑site realities. [layflat.midwesthose]
Step 1: Map your route
- Start and end elevations, highest point, and total horizontal distance.
- Number and type of bends, manifolds, check valves, and fittings.
Step 2: Define pump and duty point
- Planned flow rate (m³/h or gpm).
- Pump curve, NPSH, and maximum discharge pressure at the hose connection.
Step 3: Choose preliminary diameter and pressure class
- Use friction-loss charts for TPU layflat hose to select an ID that meets your flow and velocity targets. [zyfire]
- Select a hose pressure rating that exceeds your worst‑case operating pressure including transients. [products.kuriyama]
Step 4: Validate with the manufacturer
- Provide full duty data and AMD chemistry to your hose supplier.
- Ask for written confirmation of compatibility, expected service life range, and recommended handling procedures based on similar projects. [sunhose]
Step 5: Pilot test a section
- Deploy one or two strings in a representative section of the mine and monitor performance, handling, and connector integrity.
- Use feedback to finalize the standard AMD hose specification for your site.
The table below summarizes how TPU layflat hoses compare against typical alternatives in corrosive mining water applications. [teknikum]
| Aspect | TPU Layflat Hose | Rubber Discharge Hose | Rigid HDPE / Steel Pipe |
|---|---|---|---|
| Chemical resistance in AMD | High for many acids and salts zyfire | Moderate, compound dependent teknikum | High for HDPE, variable for steel without lining teknikum |
| Abrasion resistance | Very high, suited for solids‑laden water zyfire | High, but heavier and stiffer teknikum | Good internally; external damage from impacts products.kuriyama |
| Weight and handling | Lightweight, easy to reel and redeploy hosecraftusa | Heavy, difficult manual handling teknikum | Very heavy, requires permanent installation products.kuriyama |
| Typical length per section | Up to hundreds of meters continuous zyfire | 10–20 m sections | 6–12 m pipe joints products.kuriyama |
| Deployment speed | Fast, ideal for temporary lines | Slow, high manpower | Slow, requires welding or flanging products.kuriyama |
| CAPEX for long temporary lines | Low to medium | Medium | High (especially for steel) |
| Best use cases | AMD, pit dewatering, mobile bypass lines | Short static runs, pump skids | Permanent trunk lines to treatment plants |
For many operators, the hybrid approach works best: TPU layflat for mobile or semi‑permanent runs around pits and waste dumps, connected to rigid trunklines feeding central treatment facilities. [layflat.midwesthose]

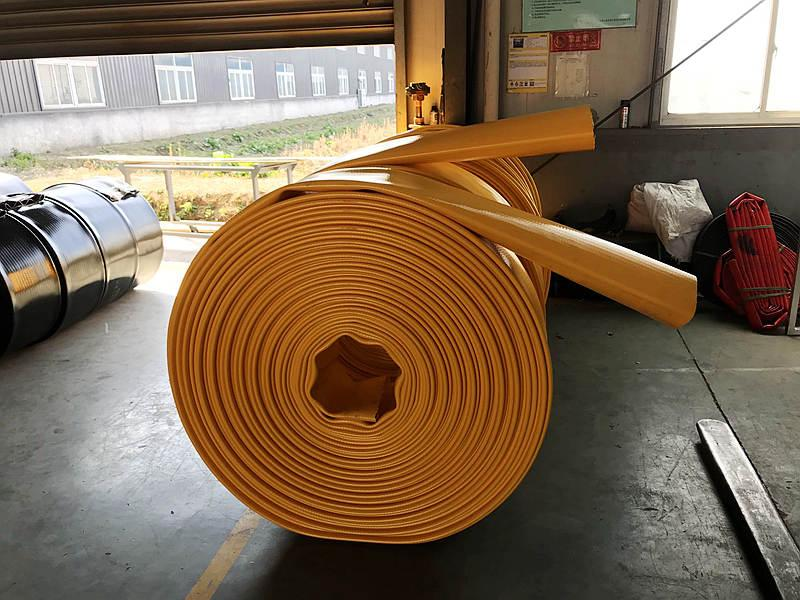

Sunmoon is a China‑based manufacturer focused on customized TPU layflat hoses for mining, oil and gas, dewatering, and industrial water transfer applications. By combining in‑house TPU compounding with controlled extrusion and weaving capabilities, Sunmoon can tailor hose properties to the specific challenges of AMD and corrosive water transfer. [sunmoonhose]
Typical customization capabilities include: [alibaba]
- Hose diameters from small dewatering lines to large 10–12 inch trunk hoses for high‑volume AMD discharge.
- Different wall thicknesses and reinforcement densities to match pressure, abrasion, and handling requirements.
- Color coding and stripe markings for system identification in complex mines.
- End‑fitting packages, including couplings, manifolds, and transition pieces to HDPE or steel lines.
For international customers, Sunmoon provides engineering support, documentation, and test reports to help align hose selection with site standards and regulatory expectations. [sunmoonhose]
Across mining, manure transfer, industrial wastewater, and emergency water supply, TPU layflat hoses have been extensively used in demanding, chemically aggressive environments. Several common patterns from these projects are directly relevant to AMD systems: [asoepiperelining]
- Long continuous lengths (up to 660 ft and beyond) reduce leak potential and installation time compared with short hose or pipe sections. [hosecraftusa]
- Operators who standardize on TPU for corrosive and abrasive service report lower failure rates and less unplanned downtime compared with legacy hose types. [puck]
- Extra‑thick outer covers significantly extend service life where hoses are dragged over rough ground or occasionally crossed by vehicles. [puck]
- Routine inspection plus simple flush‑and‑drain procedures between campaigns help maintain hose integrity and reduce internal scaling in acidic and metal‑rich waters. [products.kuriyama]
These experiences show that AMD is not an edge case for TPU layflat hose, but rather a natural extension of its proven performance envelope in other corrosive water-transfer markets. [layflat.midwesthose]
Beyond standard sizing, many operators now adopt risk‑based specification for hoses used in corrosive mine water, combining technical criteria with environmental and safety outcomes. [zyfire]
A practical approach is to classify hose runs according to:
- Consequence of failure: proximity to watercourses, sensitive habitats, or public areas.
- Accessibility for repair: remote benches, underground galleries, or busy haul roads.
- Operational criticality: lines whose failure stops pit dewatering or triggers flooding.
For high‑consequence AMD lines, you may justify:
- Higher pressure class TPU hose than minimum hydraulic requirements.
- Double‑wall arrangements or backup routing around sensitive areas.
- Enhanced connectors, strain relief, and more frequent inspections.
Sunmoon's customization capabilities make this risk‑based approach practical, allowing you to specify different hose constructions for different risk categories while maintaining compatibility of couplings and accessories. [alibaba]
How you install and operate TPU layflat hoses has as much impact on life cycle cost as material selection itself. The following best practices are distilled from manufacturer guidance and field use: [zyfire]
- Avoid sharp edges and point loads: Place hoses on prepared tracks, use ramps or protective sleeves where they cross berms or rocks. [puck]
- Control pump start‑up: Use soft‑start or VFDs to reduce pressure spikes that can stress layflat hoses and couplings. [products.kuriyama]
- Anchor at critical points: Secure hoses near bends, manifolds, and elevation changes to prevent movement during start‑up and shutdown. [zyfire]
- Plan for drainage and storage: After campaigns, thoroughly drain AMD from hoses, flush with suitable water, dry, and store in a shaded area, avoiding direct UV if possible. [zyfire]
- Document a hose log: Track length, service hours, operating pressure, and inspection notes to support replacement planning and continuous improvement.
For large AMD networks, many mines now treat hose management as part of their asset‑management system, with standardized configurations, spares, and documented handling procedures. [sunmoonhose]
From a user's perspective, the most effective way to leverage Sunmoon's capabilities is to involve them early in project planning rather than after a generic specification has been frozen. A typical collaboration process looks like this: [sunmoonhose]
1. Share your AMD profile
- Provide Sunmoon with water chemistry, expected pH range, temperature, and solids content.
- Include any site‑specific environmental or regulatory constraints.
2. Define hydraulic and operational requirements
- Target flow rate, maximum pressure, route layout, and elevation profile.
- Planned deployment method (reels, portable skids, fixed corridors, or mixed).
3. Review proposed hose constructions
- Sunmoon will recommend one or more TPU layflat constructions, ID/pressure classes, and coupling solutions aligned with your conditions. [alibaba]
- You can refine these based on budget, risk profile, and operational preferences.
4. Pilot and scale up
- Start with trial lengths in one pit or section.
- After validating performance, roll out a standardized AMD hose package across the site, simplifying spares, training, and maintenance.
By treating Sunmoon as a long‑term technical partner rather than a transactional supplier, AMD and corrosive water projects can achieve higher reliability and better total cost of ownership. [sunmoonhose]
If you are planning a new AMD line or upgrading existing corrosive‑water transfer infrastructure, you can significantly reduce risk and operating cost by partnering with a specialist TPU layflat hose manufacturer. [products.kuriyama]
A focused next step is to compile your AMD water profile, hydraulic requirements, and route map, then share them with Sunmoon's engineering team for a customized TPU layflat hose recommendation and quotation. This gives you a solution tailored to your specific mine conditions, rather than a generic off‑the‑shelf compromise. [sunmoonhose]
1. Are TPU layflat hoses compatible with all types of acid mine drainage?
TPU layflat hoses show high resistance to many acidic and saline mine waters, but compatibility depends on detailed chemistry, especially very low pH and specific dissolved metals. Always confirm with the manufacturer using your actual water analysis. [teknikum]
2. How long can a TPU layflat hose last in AMD service?
Service life depends on pH, solids load, pressure, and handling; in typical corrosive water projects, TPU hoses often outlast traditional rubber or PVC options under similar duty when correctly specified and installed. Planned inspection and proper storage are essential for maximizing lifetime. [puck]
3. Can TPU layflat hoses replace rigid pipe completely?
In many cases, TPU hoses can replace rigid pipe for temporary or semi‑permanent AMD lines, but rigid HDPE or steel still makes sense for some permanent trunk mains and plant piping. A hybrid system using both is common. [teknikum]
4. What pressure rating should I choose for my AMD hose?
You should base the pressure rating on your maximum operating pressure, including static head and transient surges, and then apply a safety factor of at least 1.5–2.0 depending on site standards. Your hose supplier can help validate the final selection. [zyfire]
5. Why work with a specialized manufacturer like Sunmoon instead of a generic hose vendor?
Specialized TPU layflat manufacturers offer tailored constructions, application‑specific engineering support, and proven experience in corrosive and abrasive water transfers that generic vendors often cannot match. This typically results in higher reliability and better total lifecycle economics for AMD projects. [alibaba]
