Borehole pumping systems can cut energy costs significantly by switching from rigid steel risers to custom TPU well riser hoses, especially in deep and remote wells where every kilowatt-hour matters. [5elem-hose.en.made-in-china]
In a borehole system, the pump pushes water up through a "riser" – traditionally a steel column pipe – to the surface. When we replace that rigid column with a flexible, custom-designed TPU layflat well riser hose, we change the system's hydraulics, weight, and installation dynamics in ways that directly influence energy consumption. [5elem-hose.en.made-in-china]
Key energy drivers in borehole pumping include:
- Pump efficiency and duty point
- Total dynamic head (TDH)
- Friction losses inside the riser
- Column weight and starting load
- Frequency of starts/stops and maintenance
- Leak rate and backflow
Custom TPU well riser hoses allow engineers to optimize several of these variables at once, especially friction loss, weight, and leak-tightness, which is where the energy savings mainly come from. [5elem-hose.en.made-in-china]
From my experience supporting industrial water and energy projects, the clearest way to see the impact on energy is to compare traditional steel riser pipes with custom TPU layflat well riser hoses across key parameters.
| Aspect | Steel riser column | Custom TPU layflat well riser hose |
|---|---|---|
| Internal friction | Higher, due to threaded couplings and possible roughness or scaling (5elem-hose.en.made-in-china) | Lower, smooth TPU liner and continuous ID minimize turbulence (5elem-hose.en.made-in-china) |
| Weight per meter | High; large contribution to starting load and cable size (5elem-hose.en.made-in-china) | Much lower; reduces lifting load and simplifies handling (5elem-hose.en.made-in-china) |
| Joint leakage | Threaded/flanged joints can leak over time (5elem-hose.en.made-in-china) | Continuous hose with integrated couplings, fewer leak points (5elem-hose.en.made-in-china) |
| Corrosion | Susceptible in aggressive or saline water (5elem-hose.en.made-in-china) | TPU is corrosion‑resistant to many chemicals and brackish water (5elem-hose.en.made-in-china) |
| Scaling | Rough internal surfaces and micro‑corrosion promote scale (5elem-hose.en.made-in-china) | Smooth surface reduces scale adhesion and keeps friction low longer (5elem-hose.en.made-in-china) |
| Installation | Labor‑intensive, multiple sections and heavy lifting gear (5elem-hose.en.made-in-china) | Faster reel‑based deployment, lighter, fewer connections (5elem-hose.en.made-in-china) |
| Depth flexibility | Changing depth requires re‑engineering column design (5elem-hose.en.made-in-china) | Hose length and couplings can be tailored for each borehole (5elem-hose.en.made-in-china) |
A steel riser system may feel "traditional" and familiar, but its inherent mass, joint complexity, and surface roughness steadily increase motor load and lifetime energy use. A custom TPU layflat riser hose solves those issues with a simpler, lighter, smoother hydraulic path, especially in wells deeper than 150–200 m. [5elem-hose.en.made-in-china]
In deep boreholes, friction loss in the riser can add several bar to the total dynamic head the pump must overcome, especially at higher flows. Each extra bar of head translates directly into more kilowatts at the motor and higher operating cost. [5elem-hose.en.made-in-china]
Customized TPU well riser hoses typically offer:
- Optimized internal diameter: Sized to your actual flow rate rather than a standard pipe schedule, so velocity stays within an efficient range.
- Smooth TPU lining: Minimizes turbulence and maintains low roughness even as the hose ages. [5elem-hose.en.made-in-china]
- Continuous length: Fewer internal disruptions compared to multiple pipe joints, which reduces local eddies. [5elem-hose.en.made-in-china]
In practice, moving from a conservative steel riser design to a properly sized TPU layflat riser can cut friction losses by a meaningful margin and shift the pump operating point closer to its best‑efficiency point (BEP). For boreholes that run 12–24 hours per day, this alone can produce double‑digit percentage energy savings over the life of the system. [5elem-hose.en.made-in-china]
Steel columns add tons of vertical load in deep wells, forcing you to oversize both the submersible motor and the hoisting arrangement. TPU layflat hoses, by contrast, have a much lower mass per meter while still handling high working pressures for shale gas, mining, and water transfer applications. [5elem-hose.en.made-in-china]
Energy implications of lower riser weight:
- Smaller or more efficient motors can be selected.
- Lower starting torque and smoother acceleration profiles.
- Reduced stress on electrical cables and VSDs.
Manufacturers such as Jiangsu Sunmoon develop TPU layflat hoses capable of high working pressures for shale gas fracturing water supply and mine drainage, showing that weight reduction does not mean compromising strength or safety. [5elem-hose.en.made-in-china]
Every threaded joint in a steel column is a potential leak path, especially when exposed to vibration, corrosion, and repeated start/stop cycles. Micro‑leaks can waste water and energy quietly: the pump keeps working, but part of the flow simply circulates in the borehole. [5elem-hose.en.made-in-china]
A custom TPU well riser hose integrates:
- Factory‑assembled couplings designed for the actual pressure and diameter.
- Long continuous hose lengths that can be made to match the borehole depth.
- Elastomeric sealing surfaces that maintain tightness under dynamic loading. [5elem-hose.en.made-in-china]
By minimizing unintended recirculation and backflow, you ensure that nearly all the pump energy goes into useful water delivery instead of internal losses. [5elem-hose.en.made-in-china]
In corrosive or high‑solid wells, steel risers gradually roughen and may pit or scale, slowly increasing friction and energy consumption year by year. TPU materials are used widely in high‑wear, chemically aggressive environments such as mining irrigation, shale gas fracturing, and chemical plants, precisely because they maintain smooth surfaces over long service lives. [5elem-hose.en.made-in-china]
That stability supports long‑term energy performance: the kWh per cubic meter of water pumped remains much more consistent over the life of the well, improving the accuracy of lifecycle cost models. [5elem-hose.en.made-in-china]
Generic pipe systems rarely match the real‑world flow and head conditions of a borehole. By customizing TPU well riser hoses to each project, manufacturers like Sunmoon can tune the system for energy performance as well as reliability. [5elem-hose.en.made-in-china]
When specifying a custom TPU layflat well riser hose, engineers can define:
- Inner diameter to balance friction and velocity for the target flow.
- Pressure rating according to pump setting depth and anticipated surges.
- Continuous length to minimize couplings and surface fittings.
- Color coding for quick visual identification and safety in multi‑hose setups. [5elem-hose.en.made-in-china]
Sunmoon's TPU layflat hoses are already deployed in high‑pressure shale gas fracturing and long‑distance water supply, with options up to large diameters and high working pressures, which translates directly to deep‑well riser applications. [5elem-hose.en.made-in-china]
Custom TPU riser hoses can combine:
- TPU formulations optimized for abrasion or chemical resistance.
- High‑strength textile reinforcement to support vertical columns and dynamic loads. [5elem-hose.en.made-in-china]
- Optional antistatic properties when used near flammable or explosive environments. [5elem-hose.en.made-in-china]
For energy‑sensitive projects, this customization allows you to avoid "over‑engineering" in some areas (which adds cost and stiffness) while ensuring a safety margin where it matters, such as burst pressure and cyclic fatigue.
Energy‑efficient borehole pumping relies on variable speed drives (VSDs), level sensors, and sometimes remote monitoring. Flexible TPU risers simplify cable routing and make it easier to integrate:
- Downhole sensors for pressure and flow.
- Fiber or copper communication lines.
- Pre‑terminated harnesses attached along the hose.
The result is a better‑instrumented well, where you can continuously verify that pump energy, flow rate, and head stay within your design envelope – and act early if performance drifts.

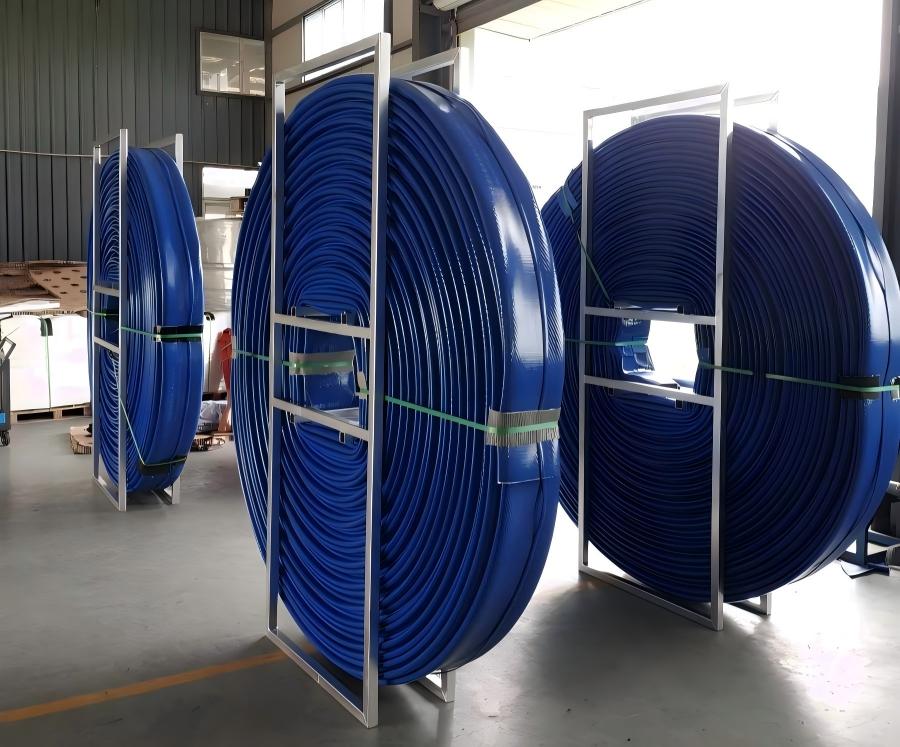

Recommended image here: Photo‑style image of a reel with TPU layflat hose, labeled with customization options like diameter and color.
AI image prompt: "industrial photo of a large steel hose reel with blue TPU layflat hose wound on it, labels indicating diameter, pressure rating, and customization options, set in a clean factory environment, high detail."
Drawing on industry experience from shale gas, mining, and large‑scale water transfer, TPU layflat hoses show their biggest advantages in:
- Deep agricultural irrigation wells with long run‑times and high cumulative energy costs.
- Mining dewatering and drainage where hoses must handle high head, solids, and rough handling. [5elem-hose.en.made-in-china]
- Municipal and industrial water supply in remote locations with expensive or unreliable power.
- Emergency well rehabilitation where lightweight, fast‑deployment risers avoid crane rental and long shutdowns. [5elem-hose.en.made-in-china]
For example, TPU hoses used in shale gas fracturing water supply often run in multi‑kilometer lines, and operators choose TPU specifically because its combination of high pressure capability and low weight reduces both pumping energy and logistics costs. The same material properties, transferred into a vertical riser design, give borehole operators a similar energy advantage. [5elem-hose.en.made-in-china]
When you evaluate a switch from steel risers to custom TPU well riser hoses, use a structured approach that balances energy with reliability and cost.
1. Define hydraulic requirements
- Target flow rate (m³/h) and daily operating hours.
- Static water level, drawdown, and delivery head.
2. Review existing system performance
- Measure current pump power (kW), flow, and pressure.
- Estimate specific energy consumption (kWh/m³).
3. Work with the hose manufacturer
- Share borehole depth, water chemistry, and pump data.
- Request a recommended TPU riser design (diameter, pressure, length, couplings).
4. Model expected friction and energy savings
- Compare calculated friction losses in steel vs TPU.
- Validate that pump stays near its best‑efficiency region.
5. Plan installation and lifecycle
- Confirm handling equipment and deployment methods.
- Define inspection intervals and replacement strategy.
By following this checklist with a specialist supplier like Sunmoon, you can quantify the expected reduction in friction losses and translate that into projected energy cost savings over 5–15 years.
When contacting Sunmoon or a similar manufacturer, you can ask:
- Which TPU compounds and reinforcement structures do you recommend for deep‑well risers in my water chemistry?
- What are the tested working and burst pressures for the proposed hose at my depth?
- Can you provide friction loss curves vs flow for the suggested diameter?
- What are your reference projects in borehole or high‑head applications?
If your borehole pumping system runs many hours per year, even a small percentage improvement in kWh per cubic meter can pay back the switch from steel risers to custom TPU well riser hoses in a short time. The fastest way to validate the benefit is a pilot well where you compare monitored energy use before and after conversion.
Sunmoon, as a China‑based specialist in TPU layflat hoses and custom solutions, can support you from sizing and material selection through to couplings and installation guidance for borehole applications. To explore an energy‑optimized riser design for your wells, contact their engineering team with your current pump curves, depth, and water analysis and request a tailored TPU well riser proposal. [5elem-hose.en.made-in-china]
Q1: Are TPU well riser hoses safe for potable water in borehole applications?
A1: TPU layflat hoses are widely used for potable water transfer when produced with food‑grade formulations and compliant manufacturing, making them suitable for borehole drinking water systems when specified correctly. Always confirm certifications with the manufacturer. [5elem-hose.en.made-in-china]
Q2: How deep can a custom TPU well riser hose go?
A2: Depth limits depend on hose design, reinforcement, and working pressure, but TPU layflat hoses are already used in high‑pressure, long‑distance fracturing water supply, which indicates strong suitability for deep wells when engineered for the specific head and safety factor. [5elem-hose.en.made-in-china]
Q3: Do TPU riser hoses require special installation tools?
A3: Installation is usually simpler than steel columns, with deployment from a reel, light lifting gear, and dedicated couplings, reducing crane time and labor requirements. The manufacturer can provide recommended handling equipment and procedures. [5elem-hose.en.made-in-china]
Q4: How do TPU hoses perform in low‑temperature borehole environments?
A4: TPU hoses are designed to maintain flexibility and performance across a wide temperature range, and are used successfully in cold‑climate water and fracturing applications where conventional rigid pipes can become brittle. [5elem-hose.en.made-in-china]
Q5: What is the typical service life of a TPU well riser hose?
A5: Service life depends on water chemistry, operating pressure, and mechanical handling, but TPU hoses in mining and shale gas applications are selected specifically for their long wear and corrosion resistance, which translates into robust lifetimes in properly specified borehole systems. [5elem-hose.en.made-in-china]
