In modern shale gas and tight oil operations, frac water transfer hose systems and multi‑stage pump stations are the backbone of reliable hydraulic fracturing water supply. As an engineering‑driven Chinese manufacturer, Sunmoon has spent years in the field helping operators design safer, more efficient layflat hose solutions for complex mountain terrain in Southwest China and beyond. [sunmoonhose]
In hydraulic fracturing, enormous volumes of water must be transported from distant sources—rivers, ponds, or storage pits—to well pads, often across kilometers of rugged terrain and steep elevation changes. Traditional steel pipe or rigid poly systems are slow to deploy and costly to move, especially in hilly regions like Sichuan where many Chinese shale gas projects are located. [asoehose]
Modern TPU layflat frac water transfer hoses address these challenges by offering:
- High flow capacity over long distances
- Fast deployment and retrieval with reels and trucks
- Excellent abrasion and chemical resistance using TPU construction
- Flexibility to follow roadsides, farmland, and uneven terrain without complex civil work [sinohose]
From an operator's perspective, the hose system is no longer a cheap accessory; it is a strategic asset that directly affects water availability, pumping efficiency, fuel consumption, and non‑productive time (NPT). [keystoneclear]
Founded in 2011, Sunmoon Hose Manufacturing Co., Ltd. focuses on TPU layflat hoses for oil & gas, dewatering, and water transfer projects. Unlike trading companies that rely on third‑party workshops, Sunmoon controls the entire production process in‑house, from TPU extrusion to reinforcement and coupling assembly. [instagram]
Key strengths that matter to frac and water transfer contractors:
- Specialization in frac water hose and shale gas projects
- Custom diameters (e.g., 6"–16"), working pressure, and length according to project specs [sunmoonhose.en.alibaba]
- Direct‑from‑factory supply, helping customers avoid extra warehouse markup and supply bottlenecks when frac activity peaks [facebook]
- Engineering support for multi‑stage pump station design, hose routing, and coupling configuration
This combination of factory control + field experience is what allows Sunmoon to speak not just as a manufacturer, but as a technical partner for global water transfer contractors. [facebook]

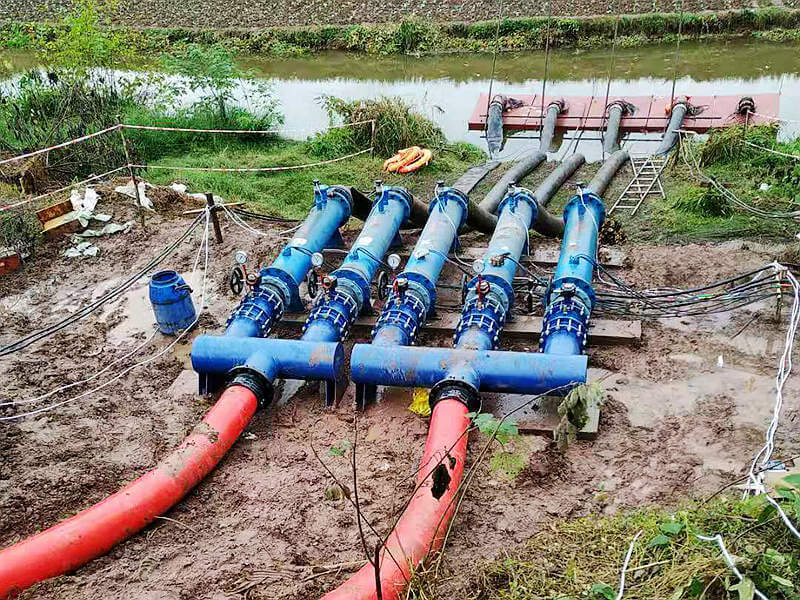

In many shale gas basins, the water source is far from the well pad and often at a very different elevation. In Southwest China's mountainous areas (for example, shale gas projects around Yibin in Sichuan), the vertical elevation difference between water source and frac site can be huge, often beyond the head of a single pump group.
In these conditions, operators typically adopt a multi‑stage pump station scheme:
- The water transfer line is divided into several segments.
- Each segment has its own pump station, which boosts pressure to overcome the next elevation gain and friction loss.
- The outlet of each station becomes the inlet of the next station, forming a series circuit.
This design ensures that each pump works within its optimal operating range, reducing the risk of cavitation, overpressure, and premature failure, while maintaining the flow rate required for frac operations. [slb]
From both a practical and engineering perspective, pump station siting determines 50% of the project's success:
- Close to roadways:
Locating stations near existing roads simplifies equipment access, fuel delivery, and hose deployment, and reduces the need for earthworks and temporary tracks.
- Maximize previous stage head:
Each station should be positioned to make full use of the pressure delivered by the upstream pump, minimizing energy waste and avoiding unnecessary additional pump stages.
- Adequate footprint:
Stations require space not only for pumps and generators, but for hose reels, spare hoses, couplings, fuel storage, and safe working areas for maintenance teams.

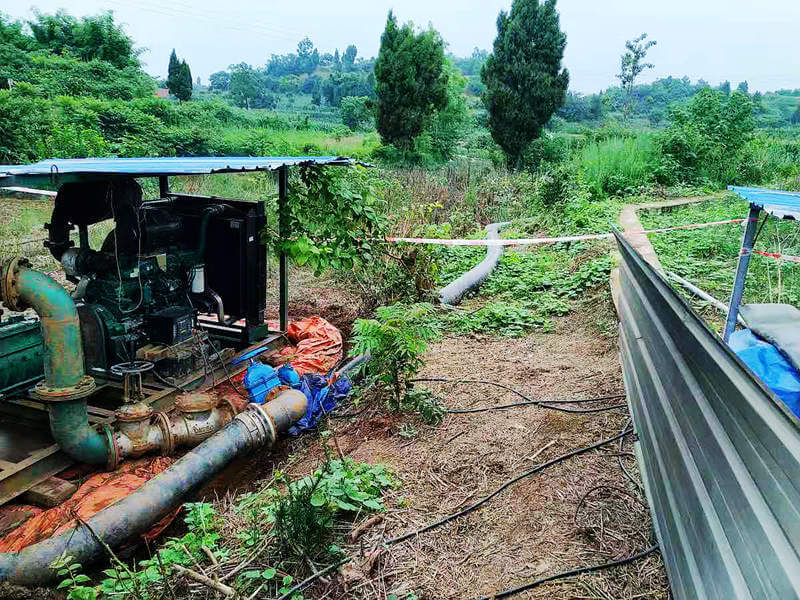

Sunmoon's field engineers often walk the proposed route together with clients, mapping elevation, bends, crossings, and nearby communities, then recommending station spacing and hose specification to balance CAPEX and OPEX.
Practical field experience shows that, for multi‑stage systems, multiple smaller pumps in parallel often outperform a single large unit in terms of reliability and maintainability:
- Start by defining the required flow rate at the well pad (e.g., m³/h or bbl/min).
- Calculate total head per segment: elevation gain, friction loss in hoses, and any special losses (valves, fittings).
- Select pressure pumps that meet the required head and flow for each stage.
Using several smaller pumps in parallel offers:
- Lower system‑wide failure risk: The failure rate of a single pump is roughly similar regardless of size; multiple units mean that losing one pump has a smaller impact on overall flow.
- Flexible operation: Pumps can be turned on or off to match different flow requirements at various frac stages.
- Rotational operation: Rotating duty among pumps exposes hidden issues in backup units before critical operations.
Horizontal multi‑stage centrifugal pumps are widely used in high‑pressure applications because of their operational efficiency and safer, compact layout compared with certain legacy designs. [slb]
Most multi‑stage pump stations use electric‑driven pumps, yet many shale fields lack ready access to grid power along the entire route. In such cases, generator sets are commonly used:
1. Calculate maximum operating power for each station (all pumps, auxiliaries).
2. Specify a main generator whose rated power exceeds the station's maximum running load, leaving margin for startups and transient spikes.
3. Provide at least one backup generator, ideally equal in rating to the main set. Where this is not possible, it must at minimum exceed the minimum required power for safe reduced‑capacity operation.
Experienced operators also consider fuel logistics, emissions limits, and noise constraints near villages and environmentally sensitive areas, and may explore hybrid or grid‑tie options where feasible.
Once station locations are fixed, engineers must define the hose specification between each station:
1. Determine required outlet pressure at the first station in a segment, based on:
- Distance between stations
- Elevation difference (absolute height)
- Desired flow rate
- Allowable pressure at the downstream station inlet
2. Use these parameters to select appropriate pressure‑rated TPU layflat hose.
Sunmoon's TPU frac water transfer hoses are designed for high working pressure, high tensile strength, and long‑distance deployment, commonly used in large‑diameter sizes such as 8", 10", 12", and 16". [instagram]
Two typical configuration strategies:
- Single large‑diameter, high‑flow hose route
- Fewer lines to manage
- Lower friction loss per unit of flow
- Ideal for long‑distance main trunk lines [keystoneclear]
- Multiple smaller‑diameter hose routes in parallel
- More flexible layout and easier repair or isolation
- Can be deployed in narrow corridors or around obstacles
- Good for mixed‑terrain routes and temporary expansions
Compared with traditional rubber or PVC hose, polyurethane layflat hose offers higher abrasion resistance, better chemical resistance, and longer service life, making it more cost‑effective for demanding water transfer operations. [hondotx]
Connectors are critical to both safety and cost in multi‑stage systems. Sunmoon frequently helps customers compare two main options:
- Straight‑through (inline) couplings
- Advantage: Lowest unit price, good mechanical strength, reliable sealing.
- Disadvantage: Installation and disassembly require more labor and time.
- Quick couplings (quick connectors)
- Typically pre‑installed by the hose manufacturer before shipment. [sunmoonlayflathose]
- Advantage: Extremely fast to connect and disconnect; ideal for projects with frequent rig‑ups and rig‑downs.
- Disadvantage: Higher unit cost, and multi‑stage networks may require a large number of connectors, significantly impacting project budget.
In real projects, Sunmoon often recommends a hybrid approach:
- Use quick couplings at:
- Pump inlets and outlets
- Road crossings
- Locations where frequent disconnection is expected
- Use straight‑through connectors on long, stable sections with low reconfiguration frequency.
This balanced strategy helps contractors control both CAPEX and deployment time, while maintaining safety margins.
In a multi‑stage system, every station is part of a chain. Any failure—pump, generator, hose rupture, coupling leakage—can affect the entire line and interrupt frac operations. Proper daily management is therefore essential:
- Professional operators and maintenance technicians are the baseline requirement.
- On‑site leadership must coordinate not only internal team tasks but also communication with local communities and stakeholders along the route.
- Water transfer lines often run close to villages; pumps and generators inevitably create noise and disturbance. Effective communication helps reduce complaints and ensure project continuity.
Supporting roles such as logistics, spare parts procurement, fuel supply, and worker accommodation directly affect team morale and response speed. In Sunmoon's experience, well‑organized logistics can be as important as pump selection.
From recent North American and Chinese case studies, one trend is clear: using larger‑diameter layflat hose (e.g., 16") can significantly improve transfer efficiency and reduce environmental impact. [hondotx]
Field observations show that:
- Larger diameter means smoother flow with lower friction loss for the same volume. [keystoneclear]
- Fewer pump units are required, and pumps can run at lower RPM, cutting fuel consumption and equipment wear. [keystoneclear]
- A single, high‑volume hose route reduces operational complexity, improving routing options and right‑of‑way utilization. [keystoneclear]
In cold or hot environments, quality TPU hose can operate in a wide temperature range (from about ‑50 °C to 80 °C), making it suitable for most climates encountered in major shale plays. [sinohose]
For contractors, this means that upgrading from smaller, multi‑line systems to fewer, larger‑diameter hoses can produce real savings in fuel, labor hours, and downtime, while supporting greener operations.
Operators and water transfer contractors are often concerned about supply chain reliability—especially when frac activity spikes and hose supply tightens. Sunmoon addresses this in several ways:
- In‑house production of TPU layflat hoses dedicated to frac water transfer projects. [instagram]
- Direct shipping from the factory in Taizhou, Jiangsu, enabling better inventory control and pricing compared with third‑party warehouses. [instagram]
- Experience across many frac water transfer projects, including high‑flow, long‑distance, and high‑pressure conditions. [instagram]
For customers, this translates into:
- More predictable lead times during high demand cycles
- Access to engineering support that understands both product and field constraints
- Flexible customization of pressure rating, length, color, branding, and end fittings [sunmoonhose]
To maximize performance and safety, Sunmoon's engineers recommend working through the following checklist when planning a multi‑stage water transfer system:
1. Define water demand at well pad
- Target flow rate (e.g., bbl/min)
- Maximum and minimum operating pressures
2. Survey route and elevation
- Measure total distance and elevation profile between source and pad
- Identify road access, villages, protected areas, and crossing points
3. Segment route and locate pump stations
- Determine number of stations and interval distances
- Plan sufficient footprint for pumps, generators, hose reels, and safe work zones
4. Select pump configuration
- Calculate head requirements per segment
- Decide on single large vs. multiple smaller pumps in parallel
- Plan duty and standby units
5. Choose hose specification and layout
- Decide between single large‑diameter main line vs. multiple smaller lines
- Specify TPU hose diameter, pressure rating, and length per segment [sunmoonlayflathose]
6. Design coupling strategy
- Identify locations where quick couplings are essential
- Use cost‑effective straight‑through connectors where possible
7. Plan power supply and fuel logistics
- Size main and backup generators
- Ensure robust fuel supply chain and safety procedures
8. Establish O&M and community engagement plan
- Train operators and maintenance technicians
- Prepare spare parts and backup hoses
- Communicate with local communities along the hose route
If you are planning a new frac water transfer line or upgrading an existing network, Sunmoon can support you from engineering design to hose supply and coupling configuration. [sunmoonhose]
Contact our team with your flow rate, distance, and elevation data, and we will help you design a cost‑effective, field‑proven TPU layflat hose solution tailored to your operation.
A frac water transfer hose is a high‑pressure layflat hose used to transport large volumes of water from sources or storage pits to well pads for hydraulic fracturing. TPU construction provides durability, flexibility, and abrasion resistance for demanding oilfield environments. [asoehose]
TPU layflat hose offers greater flexibility, easier deployment, and better abrasion and chemical resistance than many traditional hose materials or rigid pipe systems. It can be quickly rolled out and retrieved, follows terrain with minimal earthworks, and typically delivers a longer service life in high‑wear applications. [sinohose]
Diameter selection depends on required flow rate, distance, elevation, and pump configuration. Larger diameters, such as 16", can reduce friction losses, lower the number of pumps, and cut fuel consumption. Sunmoon's engineers can calculate an optimal diameter and pressure rating based on your project data. [sunmoonlayflathose]
Yes. As a custom manufacturer, Sunmoon can produce TPU layflat hoses in custom lengths, working pressures, diameters, colors, and with factory‑installed quick couplings or straight‑through fittings to match your specifications. This reduces field assembly time and improves safety. [sunmoonhose.en.alibaba]
Sunmoon controls the entire production process in its own factory in China, from raw material handling to final hose testing and packaging. Direct shipping from the factory and specialization in frac water hoses help maintain consistent quality, competitive pricing, and reliable delivery, even during peak activity periods. [facebook]
